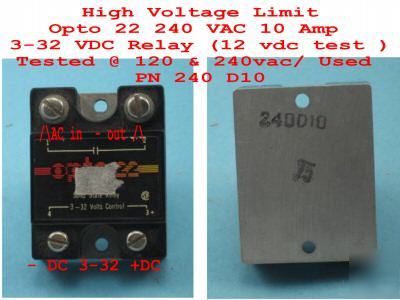

Opto 22 240 vac 10 amp dc solid state relay # 240D10
This is a DC relay which is used to switch on AC Voltage. For example applying 12DC to the lower terminals switches AC power from terminal 1 to 2. It can be used in computer applications that use low dc voltage to activate pumps, motors, lights etc.
240 VAC line connected to terminal 1
Fastening: 2 3/16" holes Metal base
Labeling: Terminals clearly marked
Optical Isolation Input to Output: 4,000 V
Turn-off Time: ½ cycle maximum
Operating Frequency: 25 to 65 Hz (operates at 400 Hz with six times
Coupling Capacitance Input to Output: 8 pF maximum
DV/DT Off-state: 200 volts per microsecond
DV/DT Commutating: Snubbed for rated current at 0.5 power factor
US mail Flat rate $5.00 to lower 48
