#12M fellows involute gear inspection instrument #25125

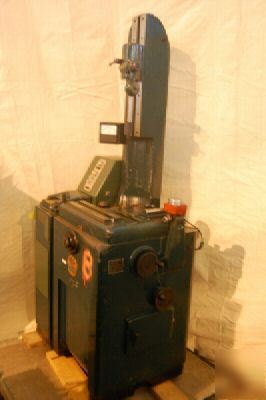

#12M FELLOWS Involute Gear Inspection Instrument
Support Column w/Adjustable Tailstock & Live
Stylus Slide w/Electronic Dial Indicator For Slide
Adjustment Graduated For One Ten-Thousandth Of
Recording/Charting System (w/Thermal Pen)
Dual Ratio Paper Drive To Record 3-Degrees Or
Full Electrics For 60Hz, 115 Volt A-C Circuit
Maximum Pitch Diameter................. 12"/(305mm)
Maximum Travel Pointer Holder.......... 9.75"/(248mm)
Maximum Travel Work Spindle (Elevation) 4"/(102mm)
Maximum Tailstock Adjustment........... 26.5"/(762mm)
Maximum Workpiece Weight............... 350 LBS.
Maximum Workpiece Weight............... (159 kgs)
Machine Overall Length................. 38"/(965mm)
Machine Overall Width.................. 36"/(914mm)
Machine Overall Height................. 82"/(2083mm)
Machine Net Weight..................... 2,220 LBS./(1007kg)
NOTES: Suitable For The Checking/Recording Of
The Deviation In Gear Tooth Involute Profile
On Spur & Helical Gears, Both Internal & External
Up To 12" (304.8mm) Pitch Diameter.
PRICE: F.O.B. Truck, Cincinnati, OH
"Certifiable" Condition................ $6,950.00
All machines/equipment subject to prior sale.
