> Intermatic ET8215CR 7 day electronic time switch

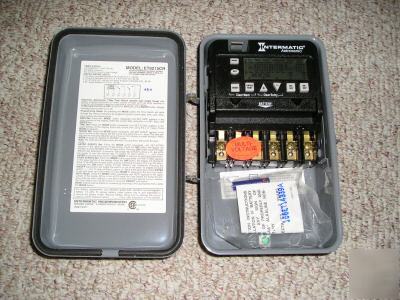

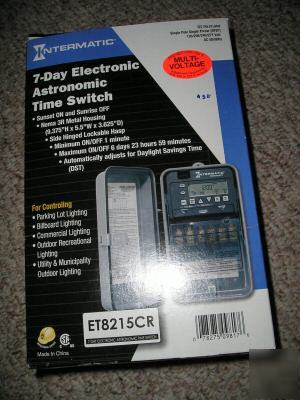

Intermatic ET8215CR 7 day electronic time switch
ET8000 Series Electronic Astro Switch
ET8000 Series Electronic Astro Switch
Intermatic’s Electronic Astronomic 7-Day Time Switch automatically switches loads according to a preset weekly schedule with up-to-the-minute accuracy. The astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices. The independent 7-day programming provides complete flexibility for applications where load switching differs each day of the week. Astronomic programming can be combined with independent programs to provide a sunset ON and timed OFF programs.
NEMA 1 drawn steel; 7-3/4†(19.7 cm) H, 5†(12.7 cm) W, 3†(7.6 cm) D; gray finish w/lockable hasp
BATTERY POWERED CLOCK OPERATION: 3 Years minimum 2xAAA
Max. ON/OFF Time 6 days 23 hours 59 minutes
Knockouts Combination 1/2 - 3/4†(one on back and each side, two on bottom)
EVENTS: 60/day (28 ON & 28 OFF plus 2 Astro ON & 2 Astro OFF)
Double Pole Single Throw (DPST)
30 A Inductive/Resistive, 24/120/208/240/277 VAC, 60 Hz
20 A Ballast 120-277 VAC 60 Hz
5 A Tungsten 120/240 VAC 60 Hz
1 H.P. 120 VAC 60 Hz / 2 H.P. 240 VAC 60 Hz
WIRE SIZE: AWG #10 through #18
Double Pole Single Throw (DPST)
http:// /images/instruction_sheets/158et11893.pdf
