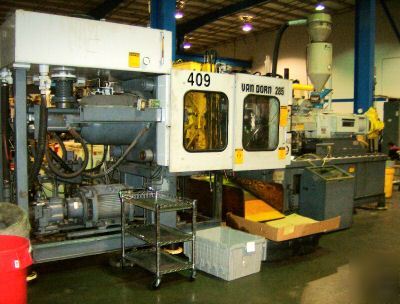

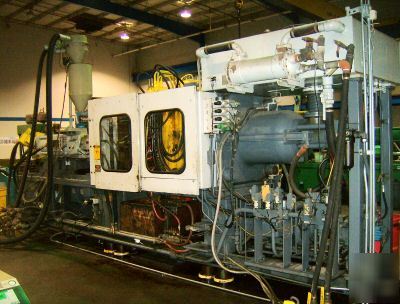

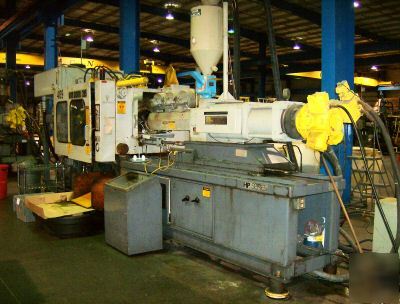

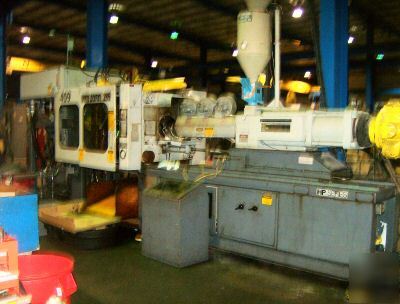

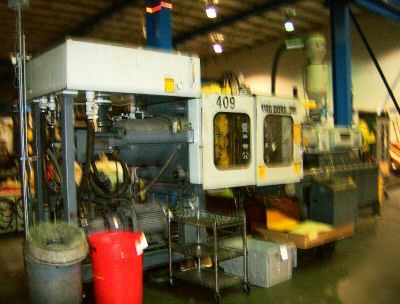

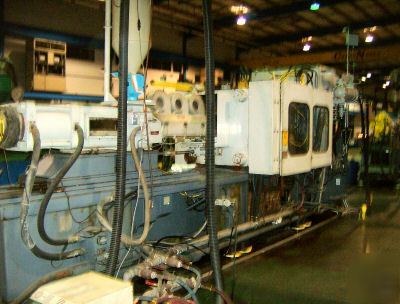

Van dorn 285 ton plastic injection molding machine-1991

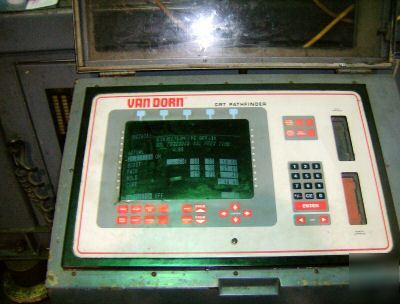

Model- 285H-RS-30F-CP-CV, Manufactured- 10/91, Shot size is 30 ounce with a General Purpose Screw. Material ran has been unfilled Polypropylene. Machine has Dual Core Pull, Controller is Pathfinder CRT-B, Platen dimension is 37" x 37", Distance between tie bars is 26" x 26", Maximum Daylight is 43.5", Clamp Stroke is 29", Maximum Mold Thickness is 14.5", Minimum Mold Thickness is 5.5". Weight of machine is 28,000 lb. Approximate dimensions are 22'L x 5'W x 8'H.
