> 1998 doall model 4100NC, 14'' x 16'' automatic band saw

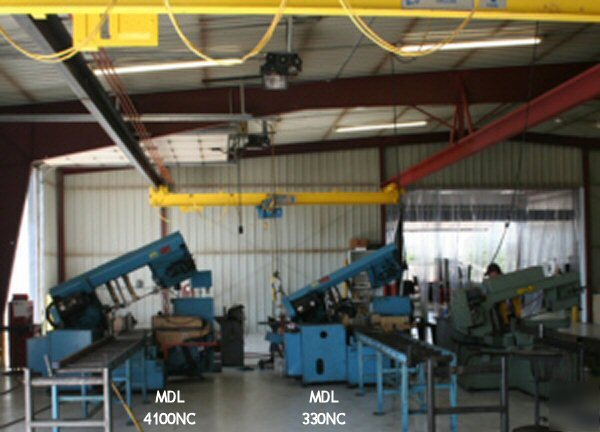

1998 doall model 4100NC, 14'' x 16'' automatic band saw
DOALL MODEL 4100NC, 14†X 16†AUTOMATIC BANDSAW
14 IN. HIGH X 16 IN.WIDE (355 X 410 MM) RECTANGLES,
16 IN.(410 MM) ROUNDS, 14 IN. (355 MM) SQUARES
BLADE DIMENSIONS 1-1/2 X 186 IN. (41 X 4,570 MM)
SPEED: INFINITELY VARIABLE BAND SPEED DRIVE 40-360 FPM (12-110 M/MIN)
TOTAL MOTOR CAPACITY 12.2-HP (9.1 KW)
HYDRAULIC SYSTEM 2-HP (1.5 KW)
BAND WHEEL DIAMETER 21 IN. (535 MM)
COOLANT PUMP 1/10-HP (.075 KW)
MIN. BUTT END WITH AUTOMATIC FEED 3 IN. (75 MM)
PASS LINE HEIGHT (MINIMUM) 30-1/2 IN. (775 MM) S
INGLE AUTOMATIC INDEX LENGTH 24 IN. (610 MM)
INDEX LENGTH, MIN AUTOMATIC INDEX LENGTH 1/4 IN. (6 MM)
POWERED CHIP CONVEYOR TO DISCHARGE CHIPS
COOLANT SYSTEM INTEGRAL COOLANT PUMP,
COOLANT APPLIED THROUGH SAW GUIDES FLUSHING HOSE
WORKLIGHT MOUNTED ON CONTROL PANEL
IDLER WHEEL MOTION DETECTOR STOPS MACHINE AUTOMATICALLY IF BAND STALLS IN WORKPIECE
VARIABLE VISE PRESSURE CONTROL, WITH GAGES LOCATED BY OPERATOR'S CONTROL CONSOLE
RAPID TRAVEL INDEX VISE CONTROL
PROGRAMMABLE CUT LENGTH WITH DIGITAL READOUT
COOLANT PACKAGE POWER DRIVEN BAND CLEARING BRUSH
BAND SPEED CONTROL AND DISPLAY AT OPERATOR'S CONTROL PANEL
AUTOMATIC BAND-KERF COMPENSATOR
SAW HEAD-RAPID APPROACH CONTROL
DISCHARGE TRAY WITH COOLANT RETURN
