49" VERTICAL MILL, DoAll FV-1V X AXIS TABLE P
49" VERTICAL MILL, DoAll FV-1V X AXIS TABLE P

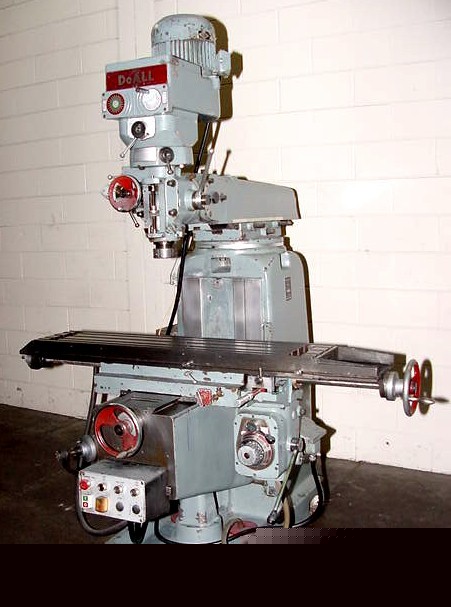

DOALL VERTICAL MILL MADE IN SPAIN BY ANAYAK
MODEL: FV-1V S/N: 78-1920 NEW: 1980
TABLE SIZE........................... 10" X 49"
TRAVELS X...................... 37.5"
Y...................... 15.75"
Z...................... 5.125"
KNEE................... 17.625"
MIN/MAX SPINDLE TO TABLE DISTANCE.... 0" - 17.625"
MIN/MAX SPINDLE CENTERLINE TO COLUMN. 6.3" - 31.5"
SPINDLE SPEEDS................LOW 60-490 RPM
TAPER................................ #40 QUICK SWITCH
HP................................... 3 HP
FEEDS............................. .025, .0013, .0040 IPR
TABLE FEEDS.......................... 1/2 to 20-7/8 IPM
WEIGHT............................... APPROX. 3400 LBS
-3/4 HP LONGITUDINAL POWERED TABLE FEED
-SINGLE LEVER CONTROL TO OPERATE BOTH RAPID TRAVERSE & FEED
-PUSH BUTTON POWER ELEVATION OF KNEE
Machine Location: HARRISON, NJ
