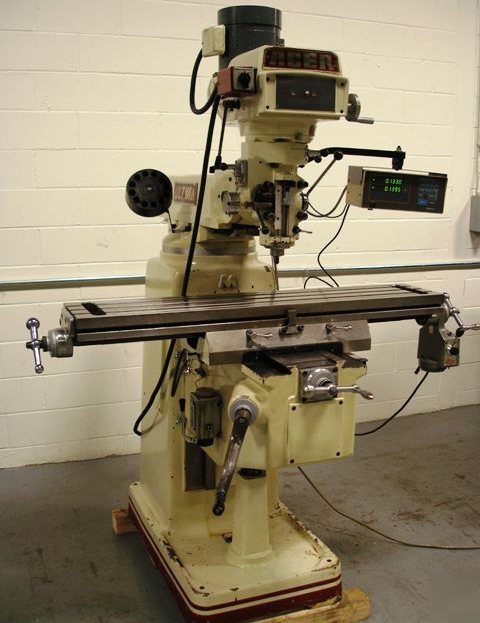

50" VERTICAL MILL, Acer ULTIMA 3VK Vari-Speed
50" VERTICAL MILL, Acer ULTIMA 3VK Vari-Speed
ACER VERTICAL MILLING MACHINE,
MODEL 3VK, S/N 9366905, NEW 1993
TABLE WORKING SURFACE ................ 10" X 50"
NUMBER OF T-SLOTS .................... 3 ON 2-1/2" CENTERS
MAX WEIGHT OF WORK PIECE ON TABLE TOP 850 LBS.
LONGITUDINAL (X) ............... 32-1/2"
CROSS (Y) ...................... 16"
VERTICAL, KNEE (Z) ............. 16"
QUILL .......................... 5"
RAM TRAVEL ........................... 24"
HEAD TILT, LEFT AND RIGHT ............ 90 DEGREES
HEAD TILT, FRONT TO REAR, EACH WAY ... 45 DEGREES
TURRET ROTATION ...................... 360 DEGREES
MAX/MIN DISTANCE, SPINDLE NOSE
TO TOP OF TABLE ................ 18.5"/0"
MAX/MIN THROAT DISTANCE .............. 28.25"/4.25"
POWER QUILL FEEDS (3) ................ .0015, .003, .006 IPR
INFINITELY VARIABLE SPINDLE SPEEDS ... 60-4,200 RPM
SPINDLE TAPER ........................ R-8
MAXIMUM COLLET CAPACITY .............. 3/4"
- SERVO PRODUCT CO. POWER FEED FOR LONGITUDINAL TRAVEL OF TABLE
- MITUTOYO DIGITAL READOUT FOR X & Y AXES TRAVEL
- HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES
- MANUALLY OPERATED ONE-SHOT LUBRICATION SYSTEM
MACHINE IS WIRED FOR 3/60/230 VOLT OPERATION.
