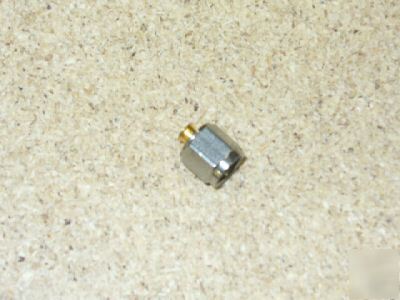

Connector,plug,electrical
BODY STYLE - 9D STRAIGHT SHAPE
OVERALL LENGTH - 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM
WIDTH ACROSS FLATS - 0.307 INCHES MINIMUM AND 0.317 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNS
NOMINAL THREAD SIZE - 0.250 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CRIMP TYPE
CABLE ENTRANCE DIAMETER - 0.088 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
SHELL MATERIAL - STEEL CORROSION RESISTING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - ASTM-A-582 ASSN STD SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - PASSIVATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
CONTACT POSITION ARRANGEMENT STYLE - ABDN SMA SINGLE MATING END
INSERT MATERIAL - PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION - ASTM-D-1710 ASSN STD SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY - 1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS - 50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION - ASTM-B-196 ASSN STD SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - CORROSION RESISTANT AND VIBRATION RESISTANT AND MOISTURE RESISTANT AND THERMAL SHOCK RESISTANT
SPECIFICATION/STANDARD DATA - 57057-8818300129 GOVERNMENT STANDARD
III OPERATING TEMP RATING - -65.0 DEG CELSIUS MINIMUM AND 165.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
MFR SOURCE CONTROLLING REFERENCE - 8818300129-1
