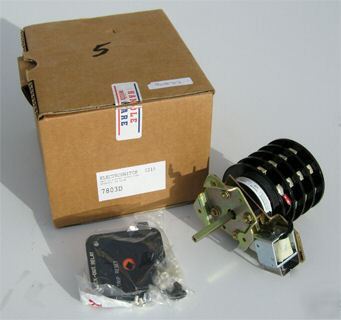

> Electroswitch 125V dc detent action rotarty switch
Electroswitch 125V dc detent action rotarty switch
* Double-Sided, Double-Wiping, Knife-Type Rotary Contacts
* Silver Contact Surfaces for Long, Reliable Life
* Terminal Screws – Easy Installation
Control Switch Special Features
* Spring Return to Normal (Vertical) Position
Instrument Switch Special Features
* Make-Before-Break (Shorting Contacts)
* Common Input Tap Switch Arrangement -– Sequentially Connected to Several Lines Using the Same Switching Deck
* Positive Positioning, Maintained Action Detent Mechanism Electrical
* Interrupt Ratings: 10A/120VAC 5A/240VAC 3A/600VAC
* Overload Current (50 operations): 22A/125VAC Resistive
* Voltage Breakdown: 1200V rms minimum
* Insulation Resistance: 100 Megohms minimum
* Contacts Resistance: 10 milliohms maximum
* Positions: 12; Adjustable Stops for 2–12 Position Rotation
* Contacts: Break-Before-Make (Non-Shorting); Make-Before-Break (Shorting)
* Action: 30° Positive Detent Indexing
* Panel Thickness: 3/16" Max. Standard
* Rotor Contacts: Silver Plated Phosphor-bronze, Double Grip
* Stationary Contacts: Silver Plated Copper, w/Integral Screw Type Terminals
* Construction: Contacts Enclosed in Molded-phenolic Disks
