Leviton motor starter switch double pole 30A dpst MS302

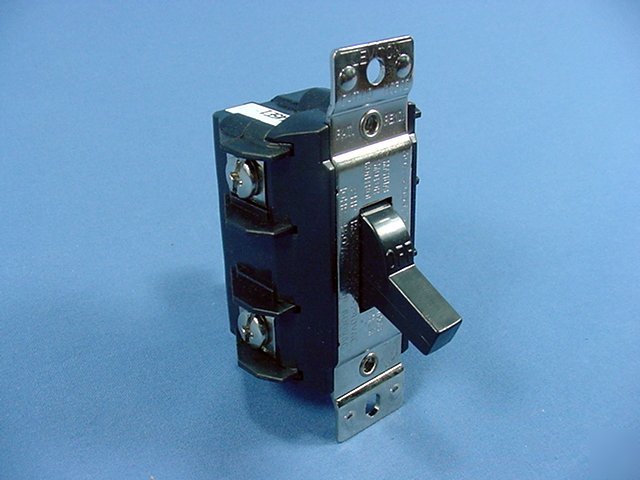

Leviton Motor Starter Switch DOUBLE POLE 30A DPST MS302
Leviton Motor Starter Switch DOUBLE POLE 30A DPST MS302
Industrial Specification Grade
2HP@120VAC, 5HP@240VAC, 10HP@480VAC, 15HP@600VAC
Leviton MS302 manual motor starting switch without overload protection. Industrial Specification Grade, back & side wired, double pole, single throw, non-grounding, 30A 3-phase 600V Max. Rated: 2HP@120VAC; 5HP@240VAC; 10HP@480VAC; and 15HP@600VAC. Each is individually packaged. Features include:
* Positive-contact design enhances fast-make/slow-break
* Silver-alloy contacts for maximum conductivity and service life
* Back and side wire terminals accept up to #10 AWG solid copper wire. For stranded #8 AWG wire, remove terminal clamp and use ring terminal
* Oversized #10 triple-combination terminal screws are vibration resistant
* All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
* Insulating barrier between terminals provide isolation from each phase
* Nickel-plated brass mounting yoke for superior corrosion resistance
* Large toggle provides positive actuation, even with gloved hand
* Leviton N13NC Type 1 Steel Enclosure
* Leviton N33NC Type 3R Enclosure
* Leviton 84001-LOK Stainless Steel Lockout Wallplate
* Leviton N13NC-T Type 1 Enclosure w/Thermoplastic Cover
This is New Old Stock and is returnable for any reason. (SKU #LMS302-EA; 0.35 Pounds)
