New 8 relcomm rf coaxial microwave switches DB9 mw hot

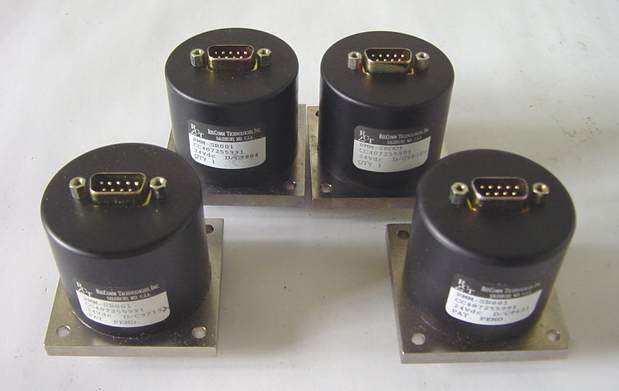

Lot of 8 RelComm RF Coaxial Microwave Switches
RMM-SR001, 24Vdc, DB9 connection, DC to 3 GHz
NEW, excellent working condition
AT&T lab technicians readied these for field installation
but they were never used or installed.
also have the Loral brand microwave switches there as well.
100-NEW-RelComm-RF-Coaxial-Microwave-Switches-DB9-24Vdc
50-NEW-RelComm-RF-Coaxial-Microwave-Switches-DB9-24Vdc
100-NEW-LORAL-RF-Coaxial-Microwave-Switches-DB9-24Vdc
The lot of 100 will = $5.85 each delivered.
and the lot of 50 will = $6.20 each delivered
Item Description RelComm RF Switch
These RF switches were designed to be used at cellular telephone tower sites. They are excellent quality and cost the telephone company a fortune (around $900 each!!). They were made by RelComm. The switching voltages, etc are applied to a standard DB9 connector (same as computer serial port).
Input/Output Connector: SMA female
Coil Voltage: 24 VDC (20 to 28 VDC @ 150 ma)
Switch Time: 15 ms-make before break
Contact Ratings: 100 Watts DC to 3 GHz
Standard DB-9 Control Connector (same as computer serial port). Pin-out included
"8 NEW Microwave Switch Wiring harness DB9 Loral RelComm"
that were made for these switches.
