New dmc crimping tool AFM8 / M22520/2-01 factory fresh

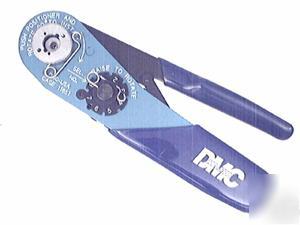

LOWER RANGE CRIMP TOOL AFM8 M22520/2-01
Qualified to MIL-DTL-22520/2, the DMC AFM8 is designed for most of the miniature and sub-miniature connector types that are so widely used in all type of electronic systems. Originally developed for the Air Force, the AFM8 meets the need for a miniature tool accommodating wire sizes 20 through 32 AWG.
The AFM8 gives a Mil-Standard 8 impressing crimp, which assures maximum tensile strength. The cycle controlled precision ratchet assures consistently accurate crimps every time. The tool frame has a built-in 8 step selector knob for ease in dialing the connect crimp depth setting for the wire being used.
Positioners adapt the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position. Crimp depth is dialed on the 8 step selector knob by merely raising the knob and rotating it to the proper position. The positioner is easily removed and changed.
Periodic gaging is recommended to insure accurate calibration. This is easily accomplished with the M22520/3-1 “G0/NO-GO†gage (DMC part no. G125). The AFM8 is 6 ¾†in length and weighs approximately 10 oz.
Other than keeping the tool clean and properly stored when not in use, no operator maintenance is required. DMC’s complete factory service is available. Complete instructions concerning the use, care and warranty are supplied with each tool. Additional copies are available from the factory.
MILITARY P/N DMC P/N DESCRIPTION M22520/2-01 AFM8 TOOL FRAME
ULTRA PRECISION CRIMP TOOL (MODEL MH800)
All DMC tools are designed and built to the highest standards of precision and quality, but some applications call for more. One such case is miniature and subminiature contacts which have extremely thin wire barrel dimensions. The answer to this demand is the model MH800 Ultra Precision Crimp Tool which utilizes the same basic components as the Model AFM8 (M22520/2-01) Crimp Tool with tighter gaging tolerances and a special indenter tip configuration that assures a uniform flow of metal during the crimping operation. The model MH800 accommodates wire sizes 20 through 32 AWG (the miniature to sub-miniature range). It accommodates the K series of M22520-2-XX positioners and is easily identified by a distinctive orange handle grip. It is the same size and weight as model AFM8. Gaging is accomplished with the G100 “GO/NO-GO†gage.
IF YOU ARE LOOKING FOR ANY OTHER DMC TOOLS, PLEASE SEND ME EMAIL I WILL ABLE TO FIND ONLY BRAND NEW TOOLS. I ONLY DEAL IN BRAND NEW TOOLS
