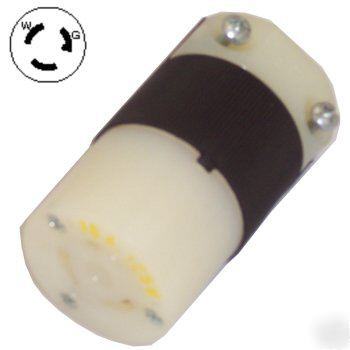

5 -hubbell 15 amp 125 v twist lock connector HBL4729C
4 - HUBBELL 15 Amp, 125 VAC Twist Lock® In-Line Female.
15 Amp, 125 VAC Twist Lock® In-Line Female 2 Pole 3 Wire
Poles and Wires: 2 Pole, 3 Wire Grounding
Design Type for Plugs and Connectors: Insulgrip
Cord Dia.: .230"-.720" (5.8-18.3)
Terminal Retainer Material: Clear polycarbonate
Cord Clamp Material: Natural (white) nylon
Terminal Clamp Material: Cold rolled steel-nickel-plated
Terminal Screw Material: #8-32 Brass (white finish on neutral screw when used)
Ground Screw Material: #8-32 Brass (green finish)
Cord Clamp Screw Material: Steel, zinc plated Multi-drive
Body Holding Screw Material: Steel, zinc plated Multi-drive
Body Contact Carrier Material: Natural White Nylon
Contact Spring Material: Brass
Spring Binding Plate Material: Brass
Ground Contact Material: .032" Bronze
Dielectric Voltage Withstand: 2,000V minimum
Current Interrupting: Certified for current interrupting at full rated current.
Temperature Rise: Max 30 C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Terminal Accommodation: 15A #14 AWG
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
