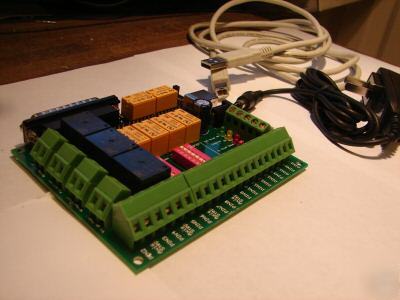

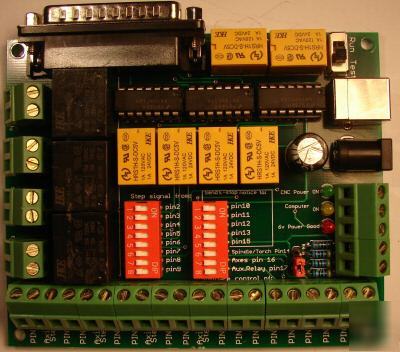

Cnc plasma / router stepper motor relay & e-stop board
IF YOU ARE RUNNING SINGLE AXIS STEPER MOTOR DRIVER BOARDS, OR A MULTI AXIS DRIVER BOARD WITHOUT RELAY CONTROL OF YOUR TORCH, ROUTER, SPINDLE OR HOTWIRE, YOU NEED THIS BOARD !! This is NOT a stepper motor Driver Board, It ADDs relay control for ON/OFF of your stepper motor driver signals, Plasma Torch, Spindle motor, CNC power supply, Auxilliary motors, and Emergency stop functions
The first two generations of this popular board that allows you full control of all your system components by your CNC software, sold out quickly. This is a much improved third generation board, NOW available. Here is what this board will do for your system:
<-<-ALSO SEE More than 220 CNC RELATED ITEMS IN OUR CNC STORE, CLICK "STORE HOME" OR A CATAGORY ON THE LEFT.
* You can turn on or off your "PLASMA TORCH" from your CNC software g-code program while running, via an on board 12 amp 110 vac on-board RELAY. or
* You can turn on or off your "ROUTER SPINDLE MOTOR" from your CNC software g-code program while running, via the on board 10 amp 110 vac on-board RELAY.
* You can turn on and off your CNC system power via CNC Software.
* You can turn on and off an "AUXILLIARY DEVECE" such as a coolant pump, spindle brake, beacon, vacuum pump, or other device via an on-board 12 amp 110 vac RELAY through your CNC software.
* You can add an unlimited number of "EMERGENCY STOP" switches or buttons to place around your system at any position. This board uses absolutly the safest, most positive method of emergency stop procedure available. A trip will instantly shut off up to 4 stepper motors and put on the electric brake to them, all instantly. A trip will also shut off the plasma torch, or router spindle, and the auxilliary device, instantly.
* This board will add full breakout ability to access your system with limit and home switches.
* This board will allow software to turn off and on all four axes.
* There is a safety interlock system via a USB cable from your computer to prevent spurrious turn-on of your devices when your computer is off.
SEE THE MANUAL, CLICK THIS LINK:
https://home.comcast.net/~brenthub/pdf_files/relay2man.pdf
Other items normally co-purchased with this board:
Big red Emergency-Stop button switch, click->->330114559353)
Short db25 m/f cable to interconnect to other multi axis with db25 connector click->(330112149167
The board measures 3-1/2" x 4-1/4" and takes up very little space.
<<
