Foxboro FBM217, termination assy, & cable gently used

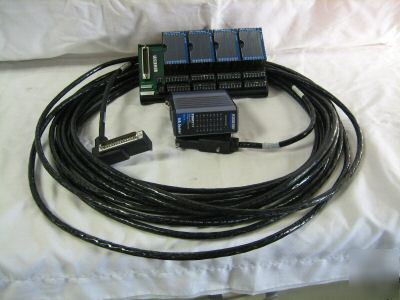

Foxboro 200 Series FBM217, Termination Assembly, and Interconnecting Cable
* (1) Foxboro 200 Series Discrete Input Interface Module, model number: P0914TR
* (1) Foxboro Termination Assembly, model number: P0916PY
* (1) Foxboro Type 4 Termination Cable (15 Meter), model P0916FM
The FBM217, Discrete Input Interface Module, provides 32 input channels, each accepting a 2 wire input from a dc voltage source.
The P0916PY Termination Assembly connects field I/O signals to the FBM subsystem. It features 32 channels, switch inputs 120Vac or 125 Vdc with external excitation. Logic Zero 0 to 20 Vac; 0 to 20 Vdc. Logic One 80 to 132 Vac; 65 to 150 Vdc. Input Current for logic one; 1.6 mA maximum Active-group isolation provided by termination assembly when used with external excitation.
The P0916FM Cable is 15 meters long and connects the termination assembly to the FBM via the modular baseplate.
These units were purchased for a project that was later canceled. All the parts were Professionally installed in a cabinet but never placed in service. These items are just a few of many similar Foxboro items that we currently have listed for sale or soon will. All units are in Like-NEW condition, guaranteed not DOA, and will be packaged securely. When new these items totaled over $1,250 .
website KA Industrial Surplus for other Industrial
While we Strive very hard to Portray each item exactly as we see it, it is your responsibility to ask any questions. Questions???
