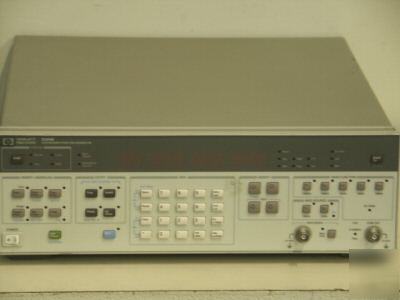

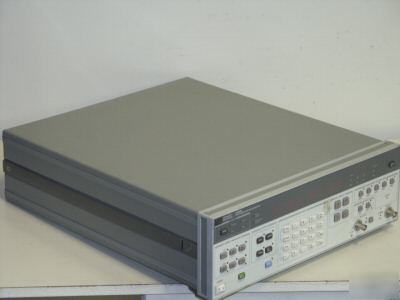

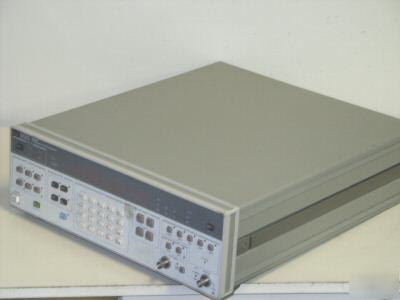

Hp 3325B synthesizer / function generator. 1 uhz-60MHZ.
The HP/Agilent 3325B is a generator/waveform synthesizer with frequency accuracy, resolution, and stability that are ideal for applications such as crystal filter test, multiplexed communication system testing, clock/timing simulation and audio frequency system testing.
Exceptionally linear triangles and ramp signals are produced with synthesized accuracy and stability for applications such as VCO testing or process control. The DC to 21 MHz frequency range (sine) makes the 3325B ideal for high-performance video system testing.
Pure sine waves or high quality squarewaves can be combined with up to ±5V of DC offset to interface with biased circuits or for stimulus in digital environments. In modulation applications, let the Agilent 3325B provide the carrier for a modulation source, or use the internal modulation source to get modulated signals from the 3325B alone.
* Functions: Sine, square, triangle, negative and positive ramps, arbs, DC offset
* Fully synthesized microhertz resolution
* Internal programmable modulation source
* Operating Temperature: 0 to 55 degrees C
* Relative Humidity: 95%, 0 to 40°C
* Altitude : 15,000 ft and below
* Power: 100/120/220/240 V, + 5%, -10%, 48 to 66 Hz, 90 VA, 120 VA with all options
* Dimensions HxWxD: 133.4 mm x 425.5 mm x 498.5 mm, (5 1/4" x 16 3/4" x 19 5/8")
All Items sell with 5 days right of return, and 15 days GUARANTEE on all parts and labor.
If in order to comply with our guarantee, we need to refund your money, you will get a FULL refund for the price of the unit...
If you need to make use of the 15 days Guarantee - We will fix, or replace, your unit. In case every attempt to fix or replace it fails, we’ll refund your money.
