> Lot of 3 single board computer PC104 pc-104 100MHZ no/r
Lot of 3 single board computer PC104 pc-104 100MHZ no/r

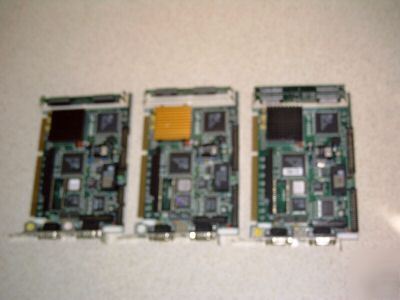

USED LOT OF 3 Single Board Computer PC104 PC-104 100MHz
* Support Intel, AMD, NS Geode 486 & 5x86 series CPU
* 2 x SIMM, 1 x IDE, 1 x PC/104
Intel® 80486 series, AMDTM 80486 series, NS GeodeTM 5x86 series
ALI M1486/M1487 and SMC 37C669 I/O chipset
128KB~512KB L2 cache (default 256KB)
Reserved socket for DiskOnChip® from M-System, support up to 144MB flash memory disk
1 PCI IDE port, support up to 2 IDE devices
1 FDD port, support up to 2 floppy devices
2 x 16550 FIFO R-232 serial ports
1 Multi-mode parallel port (SPP/EPP/ECP)
On-board 5-pin header and 6-pin Mini-Din PS/2 keyboard connector
On-board 6-pin Mini-Din PS/2 mouse connector
Dallas RTC module or compatible
16 levels of hardware interrupts
8 level time-out intervals (0.5/1/2/4/8/16/32/64sec.)
http:// /SBCs/ap-40ahd.htm

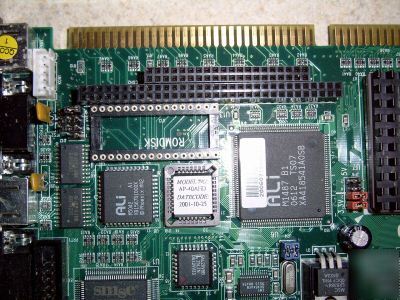

Please take a look at the actual picture.
We are not liable for incidental or consequential damages or claims.
We DO NOT accept personal or business checks.
Questions 1(***)916-4972, Mikhail (russian, english)
