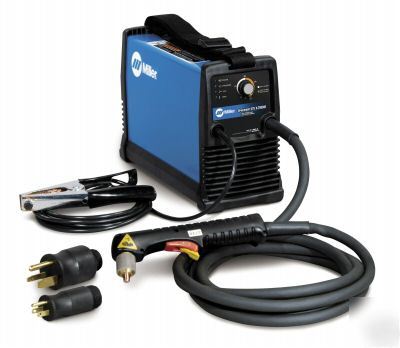

Miller Plasma Cutter - Spectrum 375 X-TREME
For ultimate portablility, the power to cut thick metals and the flexibilty to go anywhere, the Spectrum 375 E-TREME is the only plasma cutter its size with X-TREME cutting power and technologies for X-TREME versatility.
* X-TREME Versatility—Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 115–230 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for the shop or job site.
* X-TREME Protection — X-CASE provides ultimate protection during transport and storage. Additional space ideal for MVP plugs, consumable box, as well as gloves, eye protection, etc.
* X-TREME Portability — Portable in the shop or at the job site—at 18 lb the shoulder strap allows the end user to easily move from location to location.
* LED indicators for pressure, power, cup and temperature allow faster troubleshooting, eliminating unnecessary downtime.
* Ergonomic design ICE-27T torch with increased comfort, safety trigger, and improved swirl ring and cup.
* Factory pre-set air—no need to adjust the air pressure! The unit automatically regulates the proper internal air pressure to the torch.
* LVC line voltage compensation provides peak performance power under variable conditions (power fluctuations up to ±15%) for steady cuts and cleaner ending cuts.
* Gas/air filter/regulator inside the power source provides added protection during transportation. Standard air connection on back panel for easy gas or air hookup.
* Starts without highfrequency so it will not interfere with controls or computers.
* Miller’s exclusive multi-voltage plug (MVP) allows connection to 115 or 230 V receptacles without tools—choose the plug that fits the receptacle and connect it to the power cord.
* ICE-27T hand-held torch with 12 ft (3.7 m) cable
* Heavy-duty work clamp with 12 ft (3.7 m) cable
* MVPâ„¢ plugs 5-15P (115 V, 15 A), 6-50P (230 V, 50 A)
* Consumables box with 3 electrodes and 3 tips
* 10 ft (3 m) MVP power cord
* Rated Output - 27 A at 90 VDC, 35% Duty Cycle
* Weight With torch: 18 lb (8.2 kg)
* Recommended Input Pressure/Flow 4.5 CFM (128 L/min) @ 90 PSI MIN (621 kPa) 110 PSI MAX (759 kPa)
* IN-LINE AIR FILTER KIT # 228926
* Cable Cover 30 ft: Protects hoses and cables. Feature nonconductive zipper and is easily removed if necessary. 30 ft (9 m) standard length can be cut to size. Part # 118678.
* Guide, Roller Plasma Torch: For ICE 12C, 27C, 40C, 50C, 55C, 80C. Part # 194883.
* No. 30A Economy Cart with Corp Wrap: This economical running gear provides mobility with an angle for easy front panel access and extra storage space. Part # 195093.
* MILLER ICE -27T Consumable Kit : Part # 222939.
* Suction/Magnetic Pivot Base: Add this to your cutting guide for convenient attachment to all flat surfaces. The extended arm accommodates holes up to 30 in diameter. Part # 195979.
* Plasma Circle-Cutting Guides: For ICE-12C, 25C, 50C, 55C, and 80C - Cut straight lines or circles up to 12 inches in diameter. Part # 195981.
Amps Input at Rated Output, 60 Hz.
