Nais aromat relay 8 amp DK1A1B-12V 2 pc. relays

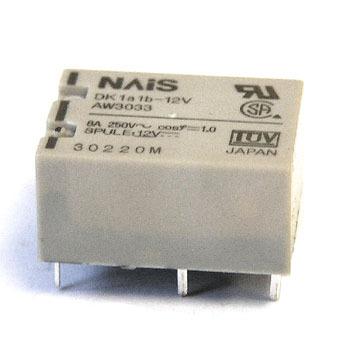

NAIS Aromat relay 8 Amp DK1A1B-12V 2 pc. relays
NAIS Aromat DK Series Relays - 2 Pieces
Large capacity in a small size
* Nominal Switching Capacity: 8A@250VAC, 8A@30VDC
* Max. Switching Voltage: 250 VAC, 30 VDC
* Pick Up Voltage: 8.4 VDC (max)
* Drop Out Voltage: 1.2 VDC (min)
* Nominal Operating Current: 16.6 mA (+/-10%)
* Coil Resistance: 720 ohm (+/-10%)
* Nominal OPerating Power: 200 mW
* Max. Allowable Voltage: 15.6 @ 65 deg C
* Dimensions (mm): 20 L x 15 W x 10 H
Compare at over $10 each in similar quantities
