square d generator transfer switch installation kit

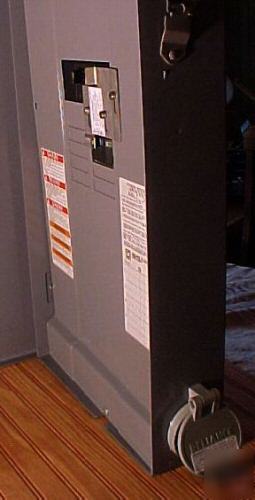

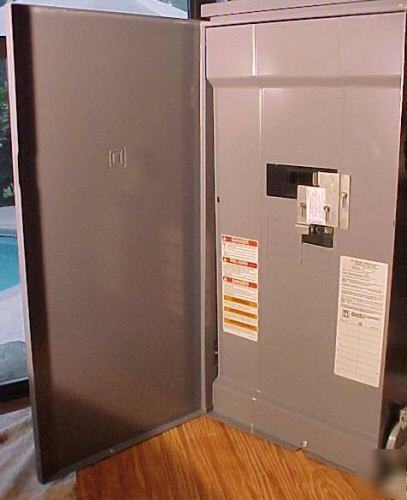

* New Square D Generator Transfer Switch Panel "QO1816M200FTRB", this comes with your choice of one (1) Main Breaker - 100,125,150 or 200 amp.
* Choice of one (1) Generator Breaker 20,30 or 50 amp.
* Choice of one (1) Receptacle in 20, 30 or 50 amp installed in the bottom or side of panel.
* Choice of one (1) Power Cord in 20, 30 or 50 amp - All Cords are 15 ft. long and completely assembled.

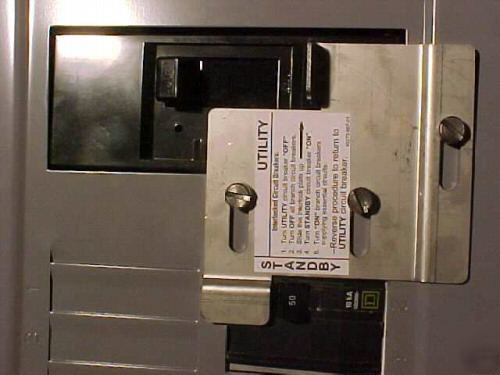

Panel includes interlock kit to prevent back feed of generator power to the utility line. When switched to generator power your entire home will be energized, allowing the use of your choice of lights &/or appliances.
NO LIMITATION OF APPLIANCES LIKE EMERGEN OR GENTRAN SWITCHES.

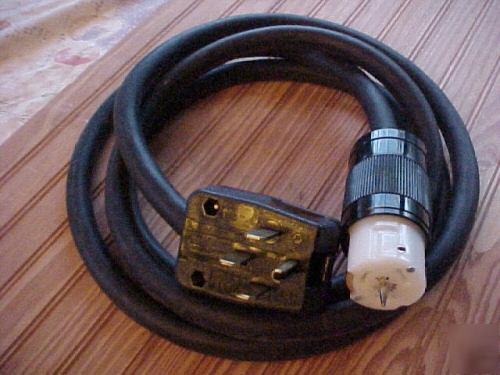

ELECTRICAL SPECS for this panel are 120/240 volt single phase 60hz 200 amp service rated 8 breaker spaces total 16 circuits,has 200 amp rated feed thru-lugs for connection of your existing indoor panel.Accepts Square D type QO or QOT breakers"not included",is capable of up to 125 amps "30,000 watts" of generator power. ELECTRICAL SPECS for receptacles and cords,120/240 volt 3 pole 4 wire 20 amp is type L14-20,30 amp is type L14-30,50 amp is type CS6364 on the panel receptacle & cord cap and 14-50P on the generator connection end. Fifty (50) amp Cord & Receptacle are pictured.
Keep this in mind when ordering - if you have already purchased a Generator, be sure you have the matching Receptacle for your Generator. Receptacle, Generator Breaker and Power Cord should be determined by your Generator size. Choices of Main Breaker should match your existing Main Breaker or Service size.
ALL EQUIPMENT IS NEW & U.L. LISTED.
ALL ASSEMBLY OF PANEL, RECEPTACLE AND CORD IS BY A STATE CERTIFIED ELECTRICIAN.
FL. Residents pay Applicable Sale Tax.
