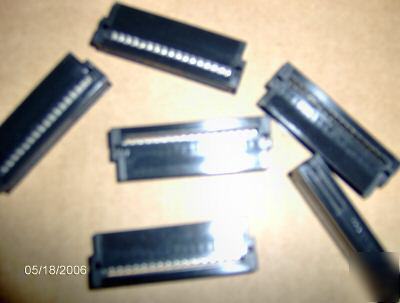

Amp # 390377-7 .050 series cable connectors (scsi)
390377-7 .050 Series Cable Connectors (SCSI) Product Type Features: Product Type = Connector Gender = Plug Number of Positions = 68 Wire/Cable Type = Ribbon Cable Mating Connector Lock = Without Panel Attachment = Without Shielded = No Detent = Without Rails = Without Termination Cover = With Product Series = Series III Wire Termination Type = IDC Color = Black Shell Material = Zinc Die Cast Bracket Material = Zinc Mechanical Attachment: Bracket Plating = Nickel Termination Related Features: Solder Tail Plating = Tin-Lead over Nickel Body Related Features: Ribbon Cable Centerline Spacing (mm [in]) = 0.64 [0.025] Wire Range (mm [AWG]) = 0.03² [32], 0.05² [30] Shell Plating = Nickel Contact Related Features: Contact Material = Phosphor Bronze Contact Mating Area Plating = Gold (30) Housing Related Features: Housing Material = 30% Glass-Filled Polyester Housing Flammability Rating = UL 94V-0 Industry Standards: RoHS/ELV Compliance = Not ELV/RoHS compliant Lead Free Solder Processes = Not relevant for lead free process Conditions for Usage: Terminate To = Wire Packaging Related Features: Packaging Method = Tray Other: Brand =
