> Biconical emc antenna 20MHZ-3GHZ incl. calibration

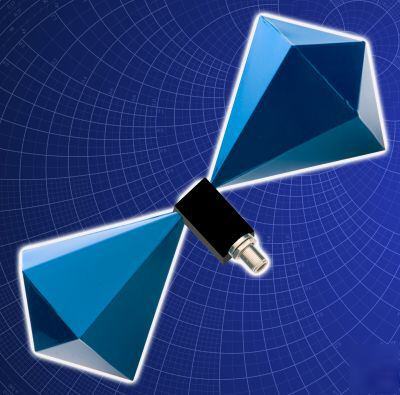

Biconical emc antenna 20MHZ-3GHZ incl. calibration
20MHz to 3GHz biconical broadband EMC Antenna
Details see manufacturers website at emf-meter.com
BicoLOG biconical EMC Antennas 20MHz-3GHz
Bikonical EMC Antenna BikoLOG Series
Visit the EMV 2008 Expo in Düsseldorf
* Australian Government Department of Defence, Australia
* EADS (European Aeronautic Defence & Space Company), Germany
* Los Alamos National Labratory, USA
* University of Florida, USA
* Rohde & Schwarz Rome, Italy
* The biconical antennas of the BicoLOG® series are suitable for interference field strength measurement. The specialized broadband characteristics allow measurements to be taken in the complete specified frequency range without switching.
* These antennas are suitable for measurement according to the following standards and procedures:
CISPR, VDE, MIL, VG, EN 55011, EN 55013, EN 55015, EN 55022, MIL-Std-461.
* Only a single broadband antenna for the complete frequency range from 20MHz up to 3GHz
* Optimal for usage with spectrum analysers for EMC measurement
* Small weight and dimensions
* Frequency range: 50MHz-700MHz
* Max. transmission power: 1W (30dBm or 0dbW)
* Nominal impedance: 50 Ohms
* Calibration points: 70 (5MHz or 10MHz steps)
* RF connector: N (female) or SMA with adapter
* Dimensions (L/W/D): (350x160x140) mm
Specifications subject to change without notice
* Frequency range: 30MHz-1GHz
* Max. transmission power: 1W (30dBm or 0dbW)
* Nominal impedance: 50 Ohms
* Calibration points: 104 (5MHz or 10MHz steps)
* RF connector: N (female) or SMA with adapter
* Dimensions (L/W/D): (350x160x140) mm
* Frequency range: 20MHz-3GHz
* Max. transmission power: 1W (30dBm or 0dbW)
* Nominal impedance: 50 Ohms
* Calibration points: 106 (5MHz or 10MHz steps)
* RF connector: N (female) or SMA with adapter
* Dimensions (L/W/D): (350x160x140) mm
* Typical Calibration Data with up to 106 calibration points (5MHz or 10MHz steps!)
Frequency Range Aaronia BicoLOG® EMC Antennas:
Examples for the utilizable frequency range:
ISM433, ISM866, Radio & TV (UKW, VHF)
VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+
CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+
CB-Radio, VHF-Band, ISM433, ISM868, Radio & TV (UKW, VHF, UHF), GSM900, CT1+, GSM1800, UMTS, 2.4GHz WLan
