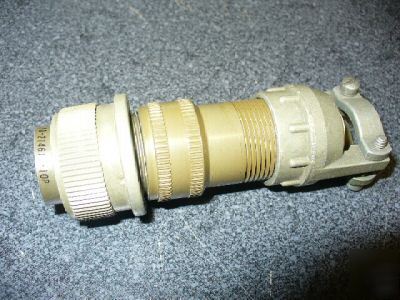

Connector,plug,electrical
BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH - 3.442 INCHES MAXIMUM
OVERALL DIAMETER - 1.250 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.000 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.316 INCHES MINIMUM AND 0.531 INCHES MAXIMUM
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ADAS 16-10 SINGLE MATING END
INSERT MATERIAL - RUBBER SINGLE MATING END
INCLUDED CONTACT QUANTITY - 3 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS - 41.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL - COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-G-45204,TYPE 2,GRADE C,CLASS 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CLASS 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND SHOCK RESISTANT AND COLD RESISTANT AND HEAT RESISTANT AND EXPLOSION PROOF
III OPERATING TEMP RATING - -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
III PRECIOUS MATERIAL AND WEIGHT - 0.015 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
