High precision heavy duty 3" drill press vise

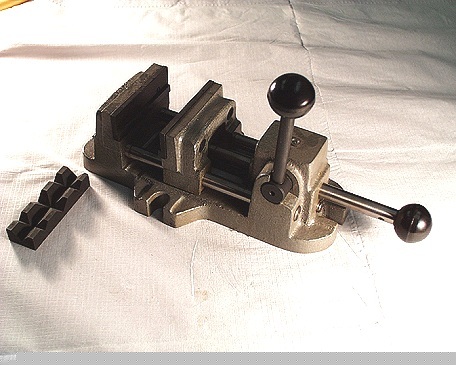

3" High Precision Heavy Duty Quick Grip Drill Press Vise
* Inside bolt to inside bolt lengthwise is 7-3/4"
* Center bolt to center bolt lengthwise is 8-5/8"
* Inside bolt to inside bolt widthwise is 3-5/8"
* Center bolt to center bolt widthwise is 4-3/8"
* Body and moveable jaw - cast iron
* Hardened and ground bars and locking mechanism
* Screw Plates - high quality steel
* With bolt lugs for clamping on work tables
Comfortable for use on work tables of drill press or other machine tools, assembly jobs, etc. Recessed jaw plates hold the workpiece on level. V-block attachment holds round or oval stock. To set, push the center bar knob up to work. Pressing on the locking lever moves the jaw ahead to grip the workpiece for operation. The workpiece is released by raising the locking lever to vertical position.
