New us motors brakemotor 1 hp G59061 fco 97 3 ph ac
You are purchasing a US Electric Motors Brakemotor. (Division of Emerson)
This is a New Motor. It was purchased in support of a production line that has been decomissioned.

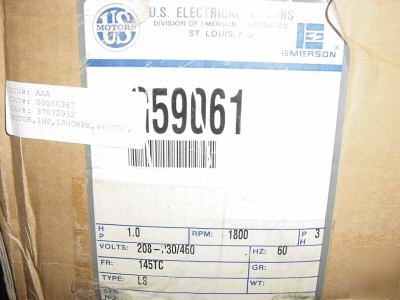

M/N# G59061 FCO 97 Serial No. 129386702/002
145TC Frame, 1 / .8 HP, 208-230-460-400V, 3 PH, 60/50 HZ, 1740/1440 RPM
3.4-3.4-1.7-1.8 Amps 1.15 SF, CONTINUOUS DUTY, EFFICIENT
Designed for high cycling applications where numerous stop and go are required.
Totally Enclosed Fan Cooled motor and open drip proof brake
Epoxy Varnish on Wound Stator and Rotor Core
Class F Insulation Code K, IP55 NEMA DGN, CSA
The FCO 97 brake motor utilizes a fail safe braking principle : when motor is ON the brake is released. 14.5 lb-ft Brake Torque
The brake is released using a DC electromagnet. When the motor is switched on, the electromagnet attracts an armature/lined brake ring compressing the spring and releasing the brake.
DC voltage is supplied by the rectifier bridge located in the motor terminal box.
The brake is actuated when the power of the motor is OFF, the magnetic field holding the brake collapses and the spring moves the armature/lined brake ring assembly to apply pressure on the brake disc, stopping shaft rotation.
