> Varnsdorf 5" bar - tos WHN13A horizontal boring mill

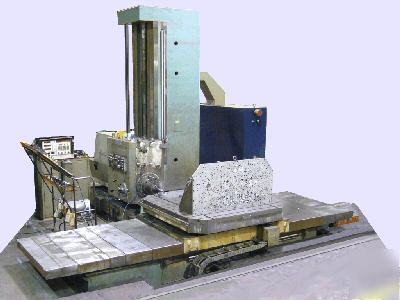

Varnsdorf 5" bar - tos WHN13A horizontal boring mill
Sigma TOS Horizontal 5-1/8" Boring Mill
Manufactured by TOS - Varnsdorf
Serial Number 001-27, Delivered New 1979
GOOD CONDITION - USED - IN SERVICE
Click on these pictures for larger image
(Does NOT include tombstones, fixtures, or tooling)
Spindle Speeds 5.6-180, and 22.5-710 RPM (22 total)
Vertical Headstock Travel - 80 inches
Travel Feeds .25-6, and .5-120 in/min (2 ranges)
Rapid Traverse (all travels) 120 in/min
Table Rotation (powered) 360 degrees
Weight Work Piece max. - 27000 lbs.
Measures 250" L x 183" W x 174" H
Retrofitted with Sabina Regenerative Control System in 1997
Equipped with Automatic Positioning System
(Manufacturers Drawings, Parts, and Instruction Manual)
Please write "mcsales101" or call (***) 831-9210 for additional information.
We will collect tax unless presented with a copy of a valid exemption certificate.
