W&g pd 1 frame analyzer

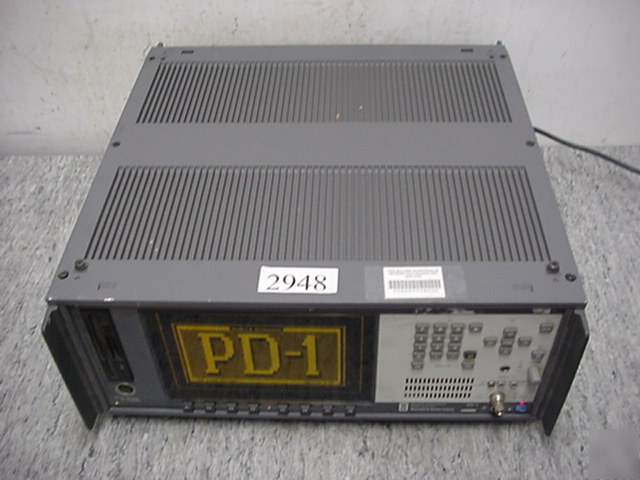

The Wandel & Goltermann PD-1 is a framework analyzer for in service analysis of framed data signals from 140 Mbit/s to 64 kbit/s.
* Demultiplexen from framework signals to CCITT recommendations G.751, G.742, G.732 and G.704 up to the 64-kbit/s-Ebene.
* Compact device with measuring possibility of framework word errors, (carriage return character) errors (G.704), bit sequence frequency of upper and subsystem, plugging rate and system alarms in the synchronous word.
* Genuine bit error measurement with pseudo coincidence sequences and digital word at feeder signals 2048 kbit/s and n x 64 kbit/s.
* Graphic announcement of error frequencies and system alarms.
* Error performance analysis after CCITT Empf. G.821.
* Automatic processing of measuring sequences (e.g. SCAN modes of operation) programmable; inserted scanner (option) serves up to 8 monitor interfaces.
* Demultiplex exit of the lower in each case hierarchy.
* Codirektionaler 64-kbit/s-Ausgang after G.703.
* V.11-Ausgang for n x 64 kbit/s.
* Inserted loudspeaker for channel monitoring - Pegelmessung in the voice channel - analogue output.
