Wallace & tiernan absolute pressure gauge 61C-1A-0030
WALLACE & TIERNAN Absolute Pressure Gauge Series 300 - 2 3/4" Dial
This listing is for a Brand New in the Box WALLACE & TIERNAN Absolute Pressure Gauge Series 300 - 2 3/4" Dial - Model Number 61C-1A-0030.
The Series 300 is convenient to use and it gives accuracy and compact size. Its mechanism is sensitive yet rugged, and it offers high accuracy at low cost. Absolute pressure is applied to the case and readout is direct, without barometric or temperature corrections. Readings are referenced to zero absolute.
Instrument calibrated at 25 degrees C for gas service and vertical mounting.
Scale length - 7" through one pointer revolution
Accuracy - 0.33% of full scale
Sensitivity - 0.2% of full scale
Case pressure and volume - 150 psig maximum, 179 cc
Maximum case leak rate - Will not exceed 0.645 x 10-5 std cc/sec or 0.0019 psi/hr.
Case connection - 1/8 inch female NPT with built-in stainless steel filter.
Case construction - Anodized aluminum with tempered-glass dial covers. Flush mounted by four mounted screws through the bezel.

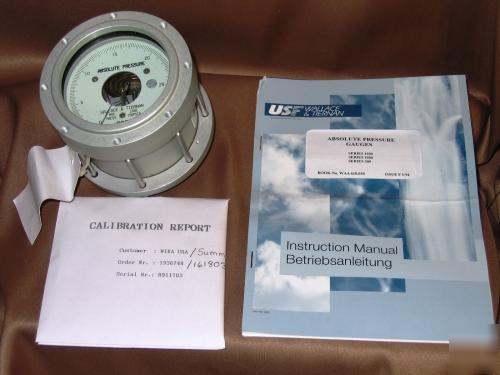

This is a purchase direct from the military. It was rated in A1 condition when it was listed for sale by Redstone Arsenal, and is new in the box complete with manual and calibration verification.
These currently sell for $1,970.00 EACH direct from a factory authorized dealer. See for yourself at http://www.wallaceandtiernan.net/absolute_gauges.php#408A.
If you need one of these, you will never get one cheaper than this one is right now!
Thanks for looking and please... visit us again soon!
