Baileigh tn-800 tube & pipe notcher

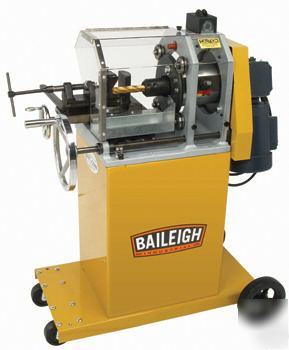

Baileigh TN-800 Tube & Pipe Notcher
The TN-800 is the perfect notching machine for the fabricator who needs to cope or fish mouth the ends of tube at 90 degrees our variable angles for applications such as hand railing, chassis and much more. This end mill style notcher is the only one on the market that requires only one end mill to notch all the way up to 3" OD. It employs a very unique design where the operator dials in the OD that they wish to notch to. So, if the operator needs to work with 1-1/4" Schedule 40 for a hand railing application he or she would simply dial in 1.660" and the machine will change its eccentric path and produce a perfect notch. This patented feature saves the fabricator thousands of dollars every year in tooling costs. No other end mill style notcher has this profitable feature.
The Baileigh TN-800 pipe notcher uses a sturdy ductile iron cast frame that weighs in at close to 500 lbs. A heavy frame reduces vibration allowing for faster notches and longer tooling life. Attention to detail in the design will benefit the serious fabricator for decades of use. The rugged notching vise uses a V-Block design that allows the part to stay on center with the cutter, as well as it provides a better hold for round profiles. There is an offset adjustment when this type of cope is required. This tube notchers vise has a quick release taper lock system that allows it to be adjusted to a new angle in seconds, saving time and money.
The vise has a rugged X and Y adjustment and a large hand wheel that actuates the notchers eccentric cutting motion. The actuating hand wheel is clutched so the operator can only turn it in one direction. This eliminates the possibility of climb milling. This machine and design is perfect for fish mouthing the ends of tubing and pipe of varying wall thicknesses and outside diameters.
The TN-800 tube notcher requires 110Volts of single phase power at 60 Hertz
