> Size 1 fused disconnect starter square d 600VOLT 10HP
Size 1 fused disconnect starter square d 600VOLT 10HP

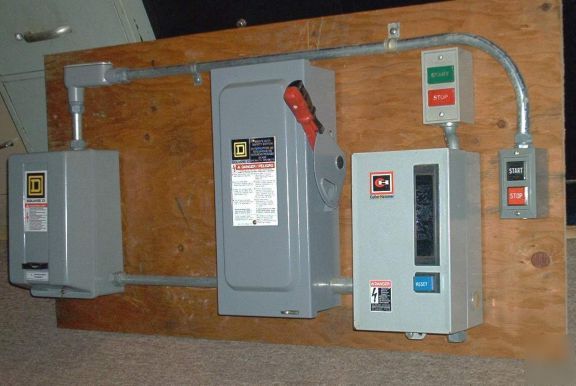

* Complete Unit consists of 1 disconnect. 2 starters and 2 remote push button stop start boxes.
* Complete to code 440v to 480volt assembly
* Complete stop start for two 3 phase motors. 440 - 480 volt.
* Runs 2 motors (1/2 - 3/4) and (5 - 7 HP) Just bring in 3 wires 440-480 volt (plus ground) and assembly is all set up to run.
* Used , Excellent Condition. Like new contact points.
* Can place remote push button stop start boxes by extending conduit, code says remote stop start must be within a ceratin distance and in view of the disconnect for that remote. Check with your local electrician.
* This unit is wired code for 1/2 to 3/4 HP and 5 to 7 HP 440-480vac.
* 2 of the components are rated for 600vdc, the Disconnect and one Remote , the starters are not rated dc.
Square D Cat # H361 Series F1
Square D Nema Size 1 rated up to 10 H.P. with higher rated heaters
3 of # B14 Heaters installed (Overload relays) 8.15 to 8.72 AMPS.
440-480 volt control voltage
Currently set up to run 5 - 7 hp depending on your motor rating.
Cutler-Hammer Size 00 up to 9 AMPS
3 of H2003B Heaters installed.
Currently set up to run 1/2 to 3/4 HP depending on your motor rating.
Square D stop start push button
Ind Cont EQ 572A UL & SA listed.
Cutler Hammer Stop Start Push Button
Enclosure Listed- Enclosed EQ A161 UL & SA listed
All standard ½" pipe conduit and connectors.
Killark 1/2" LB 0L-10 11852 UL & SA listed.
A nice complete unit with 14 mounting screws to 1/2'" CDX Plywood.
Pictures are of actual item listed for sale.
