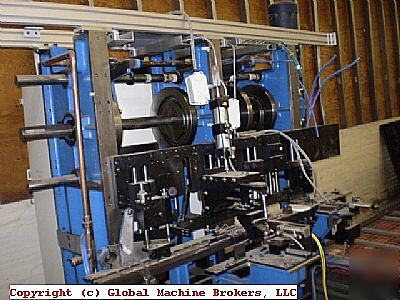

Bodine 2 bay walking beam module
Bodine 2 Bay Walking Beam Module
* Model Option: Backlash AE min
* This machine has been fully refirbished by CBC in 2001 and never ran production.
* All the right angle drives are brand new.
* All the Cams are brand new
* The remaining electrics in the cabinet are brand new
* The walking beam is brand new
* This machine has 1 pick and place slides with 5 bottom cams and 5top cams
* 4 Brand new tooling plates, slides, actuators, proximity sensors, new paint job, new drive motors and linkages, new 80/20 for guarding and more!
* This machine is a builders dream - a completly refirbished machine with no one's junk to remove and then overhaul. You can start your automation project the day you get this machine.
Call with specific questions and we will give you the answers.
The info below is from the Bodine Website.
This cam-actuated, inline assembly and test module has a unique combing mechanism and dual camshaft design.
* Dual camshafts with upper and lower tool mounting
* Works as a stand-alone module or as an element of a larger system
* Can be tooled on both sides
* Standard, limited-lube tooling units
* Speeds up to 70+ cycles per minute
* Works as a stand-alone module, as an element of a larger system or integrated with manual operations
* Standard, limited-lube tooling units are easily interchangeable. Pre-engineered tooling saves time in design and building, retooling or repair. Limited-lube tooling is perfect for cleanroom environments where contamination is an issue.
* Up to 70+ cycles per minute to meet high production requirements.
* Uses either a vertical or horizontal “comb and clamp†action that walks either the carrier pallet or the assembly itself through the process
* Modular, metric chassis is designed for standard limited-lube tooling components; custom configuration for special tooling is also available
* Indexing pitch can be easily adjusted to suit your requirements (1/2â€â€“ 8â€)
* Dual cone drive connects the upper and lower camshafts that synchronize the combing transfer mechanism. Precise mechanical actuation of the combing mechanism eliminates the need for additional locating mechanisms for accuracy in most applications.
Come on over and take a look at it if you want.
* Call Joe at (***)-484-4449 office or
