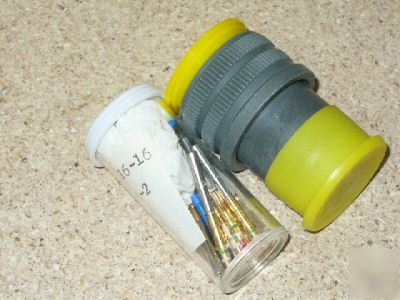

Connector,plug,electrical
BODY STYLE - 7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH - 2.125 INCHES MAXIMUM
OVERALL DIAMETER - 1.344 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE - BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF AND UNEF
NOMINAL THREAD SIZE - 1.062 INCHES AND 1.125 INCHES
THREAD DIRECTION - RIGHT-HAND AND RIGHT-HAND
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEYWAY OR MULTIPLE KEYWAY
CONTACT POSITION ARRANGEMENT STYLE - ALAE 18-1 SINGLE MATING END
INSERT MATERIAL - PLASTIC SILICONE MINERAL FILLED SINGLE MATING END
INCLUDED CONTACT QUANTITY - 4 SINGLE MATING END 1ST CONTACT GROUPING, 6 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE - ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS - 22.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 500.0 SINGLE MATING END 1ST CONTACT GROUPING, 200.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS - 700.0 SINGLE MATING END 1ST CONTACT GROUPING, 250.0 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE - CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION - BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND VIBRATION RESISTANT AND SALT WATER RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-5015 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.010 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACE GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MILC5015
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3406D18-1S
