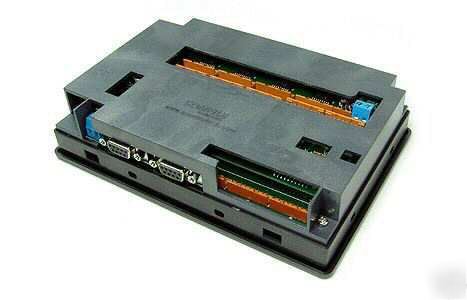

Cutouch CT1720 - integrated touch screen controller
The CuTOUCHâ„¢ essentianlly serves as the brains inside of electronics projects and industrial applications that require a programmable microcontroller or a PLC.
The CuTOUCHâ„¢ has ability to control and monitor switches, timers, motors, sensors, relays, valves, and etc...
The best part is that programming may be performed in the CUBLOC BASIC Ladder Logic lanugage. CUBLOC BASIC is very similar to most other BASIC chips and Ladder Logic is very similar to the industry PLC standards with a quick learning curve.
Whether you are a 7 year old child or a 80 year old man/woman, you can still learn CUBLOC BASIC within hours!
Dual Core Atmega128 @ 18.432Mhz
24KB(BASIC) + 4KB(Ladder Logic)
- 82 I/O lines (5V TTL) (33 input only + 32 output only + 17 input/output configurable)
Serial Ports for Communication
- 2 High-speed hardware-independent serial ports (Channel 0 & 1 : RS232C 12V)
- Configurable Baud rates: 2400bps to 230,400 bps
- 6 Channel 16-bit PWMs (DACs)
- Configurable Frequency: 35hz to 1.15Mhz
2 Channel 16-bit Counters (up to 2Mhz)
- Current Consumption w/ ports unloaded:
- Configurable Interval Units = 10ms
* Yes, a 1 Fahrad rechargable Super-Capacitor is included.

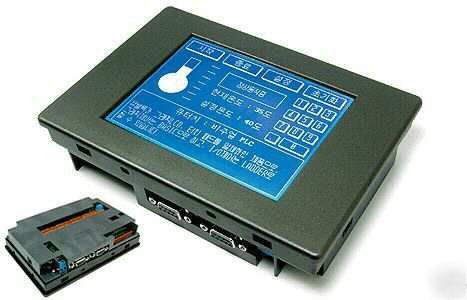

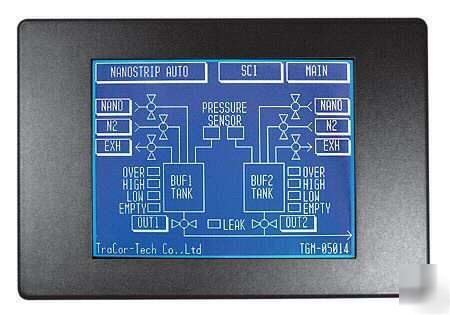

Integrated Touch-screen Panel w/ 2mm Headers and 2.5mm RCABLE Headers
- 7.17" x 5.17" x 0.98" (182.2 x 131.4 x 25 mm)
- Viewing Area (Touch-sesitive): 4.5" x 3.4" (5.6" diagonal)
* The 1.0F super-capacitor on the CuTOUCHâ„¢ will back up the data memory for a period of approximately 10 days during power-down.
For longer duration of backup period, please use a battery or a super-capacitor with larger capacity (e.g. A 10F super-capacitor will last you ~100 days or 3 months, a battery can extend this period to 1 to 10 years depending on the capacity of the battery used)

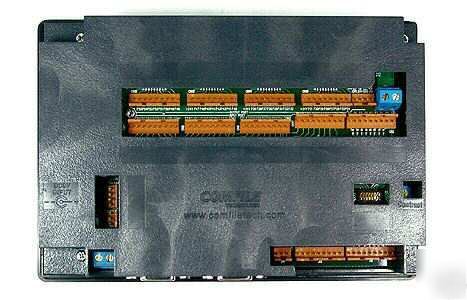

I/O Connectors and Brackets included for panel mounting.
For connector info, please refer to Product->ETC->Connectors on our homepage.
