> Daedal linear table 6" travel w/ OEM750 driver
Daedal linear table 6" travel w/ OEM750 driver
Daedal Linear Table 6†travel w/ OEM750 driver

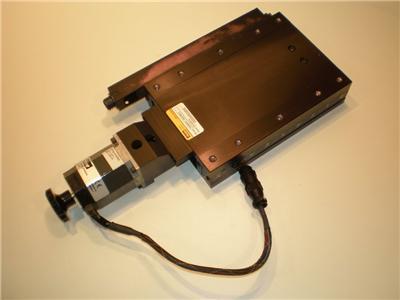

1 ea. Daedal 6" Linear Table, precision series, with limit switches
1 ea. OS22A 130 oz-in stepper motor, with manual knob
These items are used, in very good condition, and have been tested.
100BT Precision Series Specifications:
* Positional Accuracy: 0.0009 in (24 um)
* Straightness and Flatness Accuracy: 0.00048 (12 um)
The 100BT Series Linear Tables incorporate a nonrecirculating linear ball bearing system to produce extremely smooth linear translation with excellent straightline and flatness accuracy. The drive mechanism is a precision ground leadscrew which is pre-loaded to provide highly precise positional accuracy and repeatability. These tables are utilized in high-end applications requiring accurate positioning over a relatively short distance at slow to moderate speeds and accelerations. Table housings are constructed of high quality aluminum alloy and are protected with a black anodized surface finish. The top and bottom mounting surfaces are precision ground to assure flatness. The low-profile design and lightweight construction make the 100BT well suited for multi-axis applications. These tables are designed for use in clean environments and are typically found in the semiconductor, aerospace, instrumentation, and scientific industries. Typical applications include: Parts Inspection, Vision Systems, and Gauging. Scanning and Crystal Growing are also popular uses for these tables since they require extremely smooth and very precise motion.
For more information see the manufacturers web site:
http:// /daedal/cat/english/SectionB.pdf
* Open loop (without encoder)
* DC 24–75 VDC @ 2.0 Arms (motor dependent)
* Accuracy ±5 arc min (0.0833°) typical.
* Repeatability ±5 arc sec (0.0014°) typical.
* Resolution 16 selectable choices: from 200 to 50800
* Type 20 kHz fixed frequency, variable duty cycle pulse width modulated (PWM )
* Output Current 0.2–7.5 amps current per phase peak (selectable)
* Drive Supply Voltage 24–75 VDC (dependent on external power supply)
* Standby Current Reduction 25%, 50%, or 75% of selected motor current
* Max Stepping Rate 2 MHz max pulse rate; 50 rps max speed
For more information on the OEM 750 see:
http:// /literature/pg170_oem750_series.htm
http:// /literature/pdf/pg175_oem750_spdtrq.pdf
Please call us at (***) 640-7709 if you have any questions.
