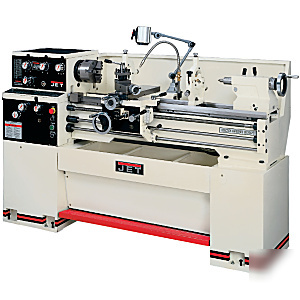

Jet 13X40 geared head engine lathe 13" swing free ship
13" x 40" & 14" x 40" GEARED HEAD ENGINE LATHES
Uniquely designed exclusively by JET
Hardened and ground gears are featured in the headstock and gearbox
D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
Headstock is constantly oiled during operation
Splined, not keyed, shafts are utilized in the headstock
Gearbox gives large threading and feed capabilities with no gear changes
V-way bed design is induction hardened and ground
Gap bed section provided for larger diameter work
Independent leadscrew and feed rod
Spindle actuation control is apron mounted
Inch-metric dials are standard
Compound and cross slide have backlash elimination
Adjustable gibs are incorporated in the carriage and slideways
Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
Tolerance test certificate included
6" 3-jaw direct mount scroll chuck with top reversing jaws
Coolant system with splash guard
Centers and headstock center sleeve
Compound Slide Travel (in.) 3-1/2
Cross Slide Travel (in.) 6-3/8
Distance Between Centers (in.) 40
Follow Rest Capacity (in.) 2-3/4
Number of Longitudinal and Cross Feed Rates 40
Overall Dimensions 73-3/4 x 29-1/2 x 46-3/4
Range of Cross Feeds (IPR) 0.0003 - 0.0103
Range of Inch Threads (TPI) 4 - 112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45 - 7.5
Range of Spindle Speeds (RPM) 40 - 1,800
Spindle Taper W/ Sleeve MT-5 (MT-3)
Steady Rest Capacity (in.) 3-3/4
Swing over Cross Slide (in.) 7-1/2
Tailstock Spindle Travel (in.) 4-3/4
Taper in Tailstock Spindle MT-3
We require a physical address on all items
