New yokogawa/johnson dp harp transmitter E430ADAS4B92NA

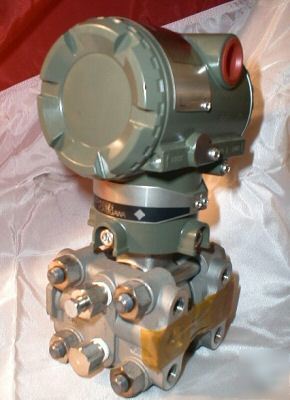

Yokogawa/Johnson DP Harp Transmitter E430ADAS4B92NA/FF1/D1 NEW
The high performance gauge pressure transmitter model EJA430A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure. Model EJA430A also features remote setup and monitoring through communications with the BRAINâ„¢ terminal
Gauge pressure transmitter
Output Signal : (D) - 4 to 20 mA DC with digital communication (BRAIN protocol)
Measurement span(capsule) : (A) - 0.03 to 3 MPa {0.3 to 30 kgf/cm2} {4.3 to 430 psi}
Wetted parts material : (S) - SCS14A BODY, SUS316L CAPSULE, SUS316 PLUG
Process connection : (4) - with 1/2 NPT female process connector
Bolts and nuts material : (B) - MAX. WORKING PRESSURE- SUS630 3 MPa {30 kgf/cm2} 14 MPa {140 kgf/cm2}
Installation : (9) - Horizontal impulse piping type, left side high pressure
Electrical connection : (2) - 1/2 NPT female, two electrical connections without blind plug
No Mounting Bracket Included
