bussman/cooper lps-rk-500SP fuses - 600V - nice

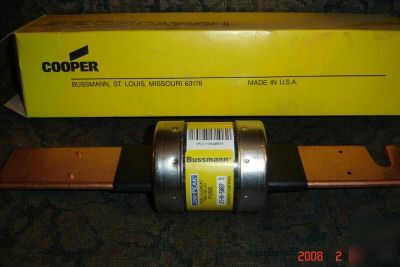

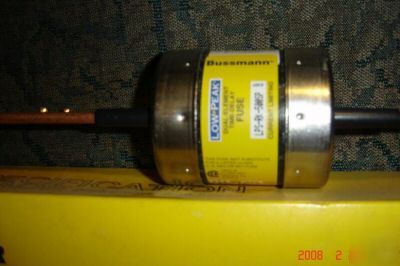

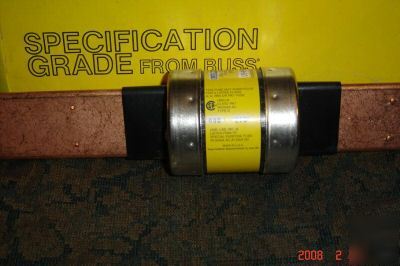

BUSSMAN/COOPER LPS-RK-500SP Fuses
Low Voltage, Branch Circuit Rated Fuses - Branch Circuit Rated FusesLow-Peak® dual-element, time-delay fuses
SpecificationsDecription:Current-limiting, dual-element, time-delay fuse; 10 seconds (minimum) at 500% rated amps (8 seconds for 0-30A sizes). Now available with optional permanent indication on select ratings (see Catalog Numbers table).
Construction:Copper fuse element.
Agency Information:CE, UL Listed – Special Purpose*, Guide JFHR, File E56412, CSA Certified (200,000 AIR), Class RK1 per CSA C22.2, No. 248.12, Class 1422-02, File 53787.Features and Benefits:
* Separate overload and short-circuit elements provide time delay for close sizing of high inrush loads linked with K1 current-limitation and selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents widespread blackouts.
* Inventory consolidation of Class RK1, RK5 and H fuses for reduced SKU investment and minimizing potential for misapplying fuse.
* 300,000A RMS symmetrical interrupting rating provides adequate ratings without obsolescence for all electrical systems, big or small.
* Insulated end caps reduces exposure to live parts and extends air gap to distance between blades of adjacent mounted fuses or to housing.
* Large Distribution Switchboards
* Machinery Disconnect Switches
Boxes are beat up from storage, but fuses are new !
