100KW pillar induction melting system-melt bronze brass
(1) Used 100 KW Pillar Induction Melting System; Model # AB5104-3035; S/N 40354; Mfg. 1996
Capacity(Heating).................................................. 100 KW
Capacity(Melting).................................................. 300 lbs. (steel)
Induction Frequency.............................................. 3 KHZ
Output Voltage...................................................... 1250 (max)
Output Amperage................................................... 2592 (max)
Crucible Volume.................................................... 1070 Cu./In.
Charging Height..................................................... 32" (from floor)
Charge Diameter..................................................... 10 ¾"
Pouring Height....................................................... 36" (nominal)

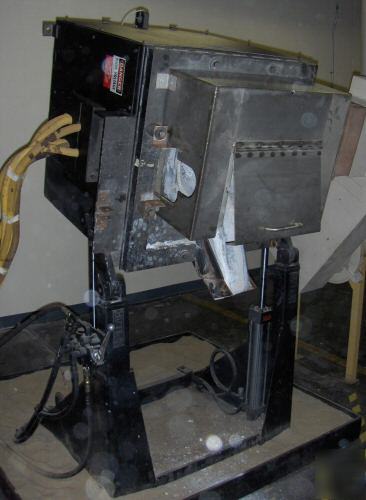

Pouring System....................................................... Hydraulic Tilting Type
Pressure....................................................... 30-100 P.S.I.
Temperature................................................ 115° F (max)
Flow(Volume)............................................. 15 GPM (min)
Electrical Characteristics(Input).............................. 480 VAC / 3 Phase / 60 Cycle

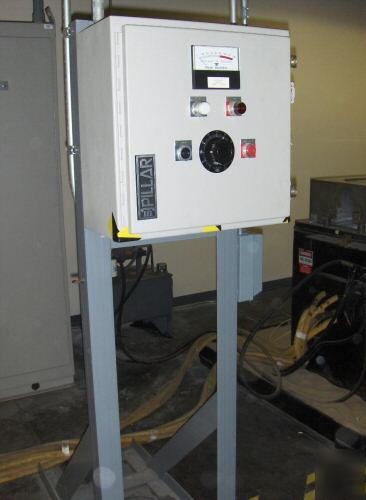

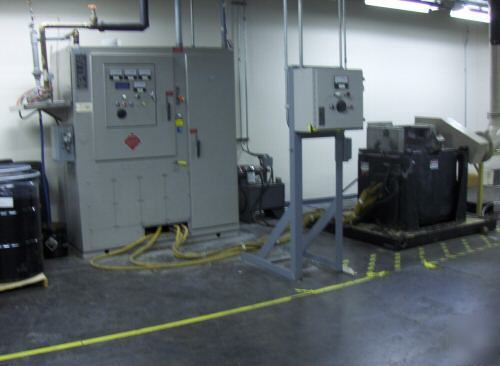

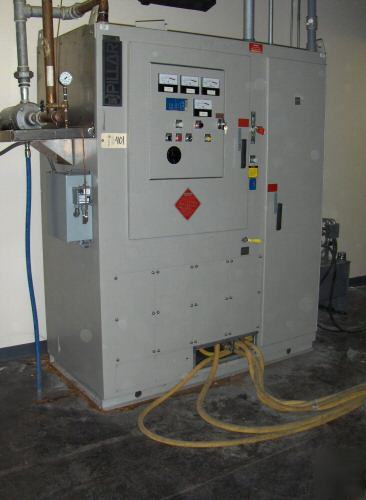

Complete Electrical Controls with Operators Station

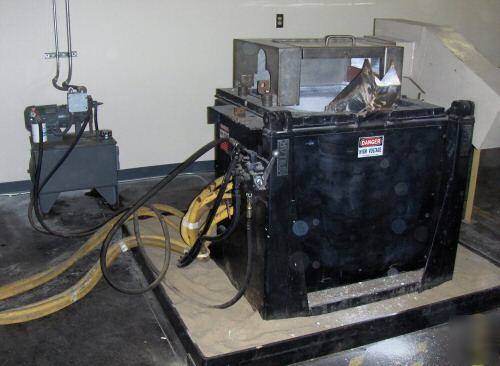

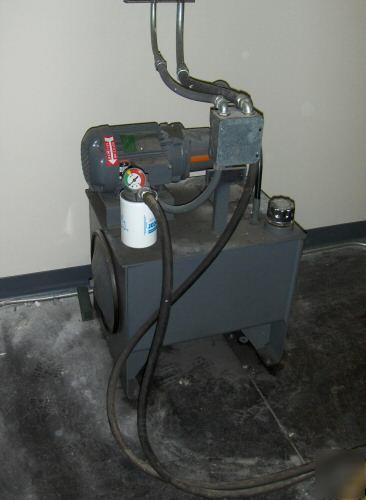

Complete Hydraulic System with Controls

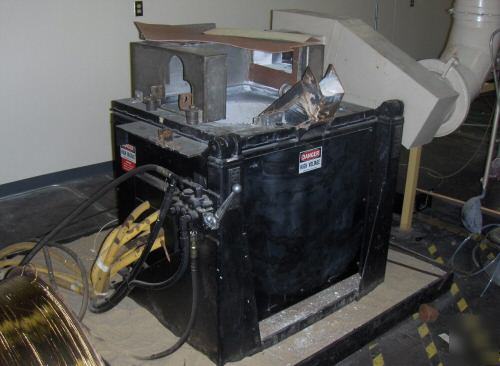

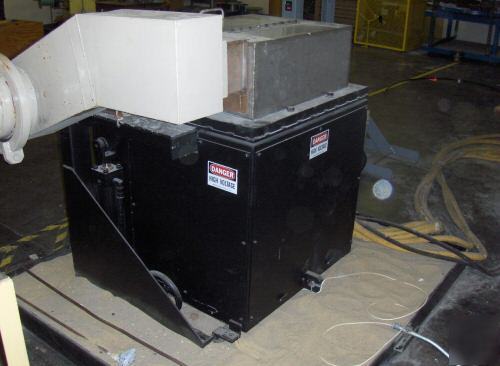

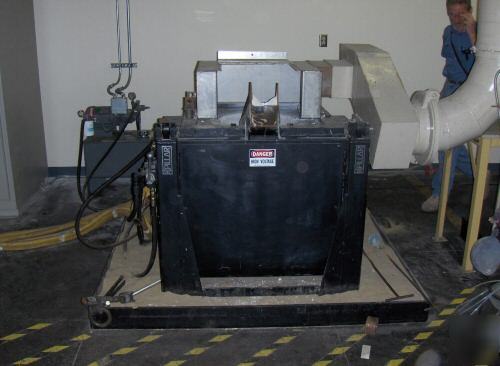

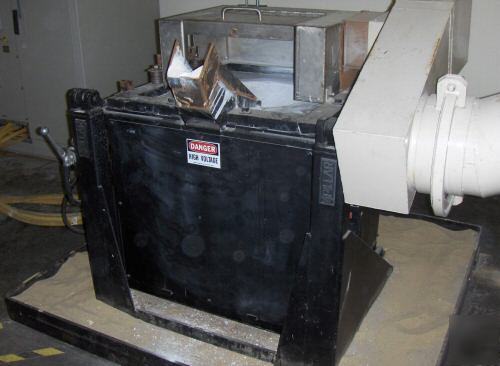

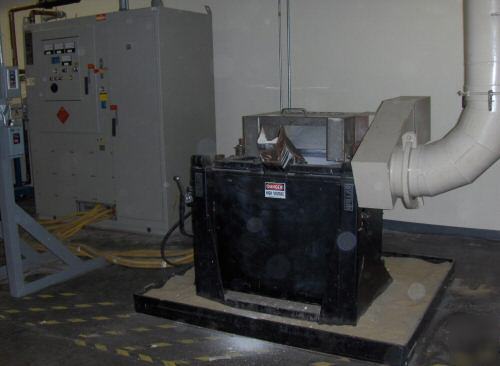

Complete Steel Frame Melting Furnace Station with Hydraulic Pouring Control and Spill Control Sand Bed

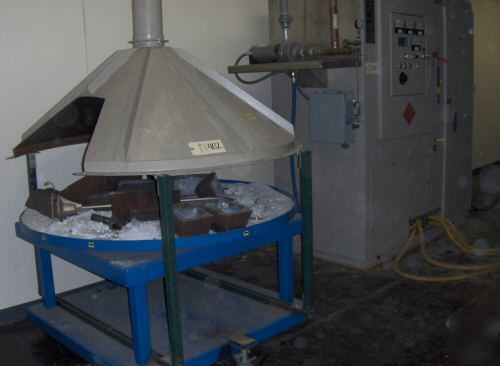

Rotary Pouring Carousel with Flame Hood
Inter-Connect Hoses and Control Lines
Furnace Only............................. 32" x 32"
Induction Controls..................... 6' L-R x 3' F-B x 7' High
Weight: ............................................................. 5,000 lbs. (est.)
F.O.B (loading included in the sale price)....................Ohio
