> Agilent (hp) E9327A peak & average power sensor, 18 ghz

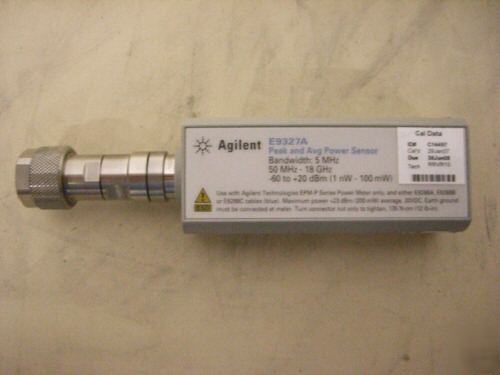

Agilent (hp) E9327A peak & average power sensor, 18 ghz
Agilent / HP E9327A Peak & Average Power Sensor, 50 MHz to 18 GHz, -60 to +20 dBm, Type-N (m) 5 MHz Modulation Measurement BW
* Description: The Agilent (HP) E9327A Power Sensor has two measurement paths, one for peak and time-gated measurements (a fast sampled path) and another for stable, low-level average power measurements. The E9327A power sensor has a frequency range of 50 MHz to 18 GHz. Using this one sensor, you can measure W-CDMA, CDMA and TDMA as the sensor provides a medium and low modulation bandwidth setting, selectable by the meter. You can select modulation bandwidth required for your application (varies by sensor), while maintaining the maximum dynamic range. Other features include:
* 5 MHz video bandwidth, ideal for W-CDMA and cdma2000 applications
* Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
* Calibration factors, linearity, temperature and bandwidth correction stored in EEPROM

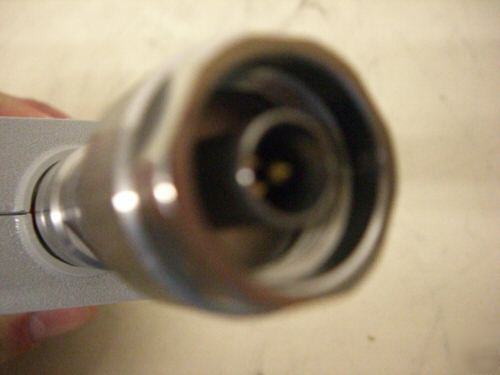

* Precision type-N connector as standard
* Cosmetic Condition: Excellent
* Working Condition: Came directly out of working lab. Cal sticker expires 10/24/08
* Other Comments / Notes: Please note that we have several of these and the one you get may not match the exact serial number shown in the picture
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
