> Ando AQ6141 multi-wavelength meter as-is

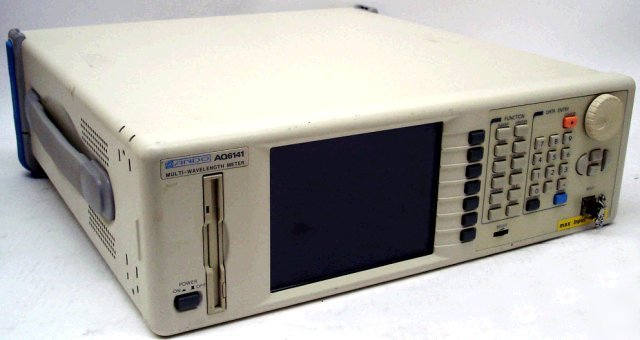

Ando AQ6141 multi-wavelength meter as-is
This unit is NOT covered by our 10 day right of return or our 100 day warranty.
Unit may not meet specifications and/or be defective.
Unit comes as shown, no other accessories are included.
Manufacturer's Specifications/Features:
(Please note that not all features may be included in this item)
The Ando AQ6141 Multi-Wavelength Meter is the ultimate instrument for all wavelength-related measurements. With its unprecedented high wavelength accuracy (+/-0.3 pm at 1550 nm) and high resolving power for peak separation, the Ando AQ6141 has become the new industrial leader in the DWDM test and measurement. The AQ6141 also features a unique measurement function that can determine narrow band-pass filter center wavelength with great accuracy. This instrument is a perfect tool for light source inspection, research and development, as well as DWDM system manufacturing.
Ultra-high-accurate wavelength measurement: Accuracy:±0.3 pm, at 1550 nm
High resolvable separation: Minimum resolvable separation is 5 GHz (1550 nm:40 pm)
Ultra-wide Wavelength Range: 900 - 1680 nm
Unprecedented capability for large channel-count measurements: Wavelength and power measurement for up to 512 channels
Pump laser evaluation: Wavelength as low as 900 nm can be measured. 980 nm band is compatible
Drift measurement: Refers to measuring the time-passage changes wavelength and power
Grid monitoring function: Complete functions for monitoring DWDM light source.
Complete memory functions: Can record measurement data and measurement conditions on a floppy disk and in internal memory
6.5 inch color display: Able to check waveform data and peak wavelength by displaying waveforms and measurement data simultaneously
* Wavelength Range: 1270 to 1650 nm (182 to 236 THz)
* Wavelength Accuracy (@1550nm): +/-2 ppm
* Minimum Resolvable Separation: 10 GHz or less (80 pm)
* Maximum Number of Line Input: 256
* Measurement Time: 1.5 sec (or less)
* Peripheral Interfaces: GPIB, RS-232, Printer, Monitor
ANOTHER GREAT DEAL FROM TECHRECOVERY!
Item #: PWH03049 - 11R80-04-07
* Test equipment with pre-calibration has a 100 day guarantee from defect and 10 day right of return.
* Please allow an extra 7 - 10 business days for delivery for items that require crating and freight delivery.
