Hp 3488A switch unit & 2X 44478A 1.3GHZ mux 75 ohms

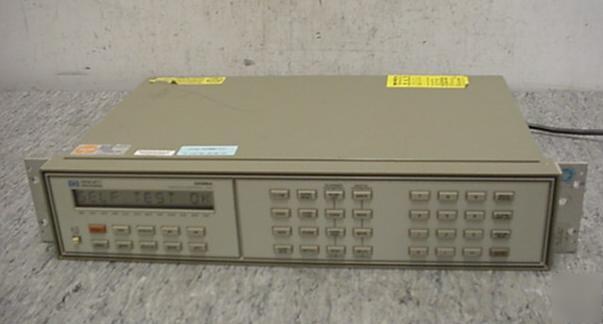

HP 3488A Switch Unit & 2x 44478A 1.3GHz Mux 75 Ohms
The Agilent 3488A switch/control unit brings versatile, GPIB programmable switching to tests requiring multi-channel measurements. The Agilent 3488A provides signal switching with the integrity and isolation needed for high-performance production test systems. It also offers a flexible, low-cost interconnection for automating experiments on the bench and for developing tests in the lab. The Agilent 3488A is designed to hold up to five switch and control modules.
* DC to 26.5 GHz signal switching
* Matrix, multiplexer, and general purpose relays
* 40 configuration storage registers
* Digital I/O control and actuation
* 11 switch and control modules
The 44478A Multiplexer Module is an ideal choice for broadband switching of high frequency or fast pulse signals. Dual 1-to-4 multiplexers provide bi-directional switching of signals from DC to 1.3GHz. High channel isolation (>55 dB at 1 GHz) assures quality dynamic-range measurements using spectrum, network, or distortion analyzers. Each 1-to-4 multiplexer consists of seven relays in a "tree" structure, which provides high isolation and low VSWR (voltage standing wave ratio). All the connectors on the module's edge are female BNC for ease of wiring. Off-channels can be terminated in resistors to maintain proper operation of DUT circuitry. Simply plug a 50 Ohm SMB type resistive termination onto the on-board male SMB connector provided for each channel
Switching up to: 1 AMP, 24 W or 24 VA
* Insertion loss less than: 1.9 dB at 1.3 GHz
* Maximum Scan Rate: 43 Chans/sec
* Maximum Voltage: 42 V, DC+ AC peak
* Maximum Power Per channel: 24 W, 24 VA or 44 dBm
* Characteristic Impedance: 50 Ohm
Local Pick up is also available at our office in Clayton South VIC 3169 with 24 Hrs Prior Notice.
