Omega fd 303 ultrasonic flowmeter transmitter
You are purchasing with the security of dealing with a legal and
legitimate business that is licensed in the State of Indiana
and rated by Dun & Bradstreet . We proudly display our phone number
Tel: (***)-723-4946 (9am to 3:30pm EST, mon-fri, closed holidays)

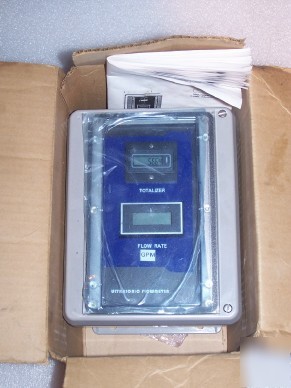

Everything included is shown in photographs.
Omega FD-303 Ultrasonic flowmeter transmitter
Current model that sells for $1455
The manual is on the Omega website
http:// /pptst/FD300.html
The FD-301A Series ultrasonic flow meter transmitter systems are designed for use where a sensor cannot be installed in the process. For liquids with suspended solids or aeration, standard and enhanced models. Available in non-invasive fixed position style. The FD-301A is an ideal doppler flow measurement solution. They are well suited for full pipes of liquid that contain at least 100 ppm of 100 micron or larger suspended particles or gas bubbles which act as sound “reflectors†and are necessary for operation. Ideal uses for this technology include: flow measurement of wastewater sewage, reactivated sludge, waste activated sludge, primary sludge, slurries, crude oils, lime slurries, phosphates and pulp stock.
A strength light indicates when sufficient levels of suspended “reflectors†are present to provide a flow reading. The encapsulated, submersible, design of the transducer sensor head can be easily mounted to the pipe surface with the coupling compound and clamp supplied with the unit. A 6 meter (20 ft.) cable for connection to the transmitter/ indicator unit is supplied as an integral part of the sensor. The FD-5000 sensor is utilized on pipes that range in internal diameter from 1 to 120". Flowrates can be measured in small line sizes from 1 /4 to 1" with use of the small pipe sensor, model FD-5.
Low Flow option available by adding "-LF" to the model number. The low flow option range is 0.1 to 2.5 feet/second.
Any delivery that is greater than 35 miles will be charged mileage from our location to the destination location at the rate of $2.75 per mile
Approximate weight 12 pounds from zipcode 46787
FOB Origin,Freight Prepaid & add
* Double wall cardboard boxes stapled and taped
* Tyvek padded mailing envelopes
* Delivery and trucking services
* Rigging and setup is available
