Penn johnson controls pressure switch P72AA-17

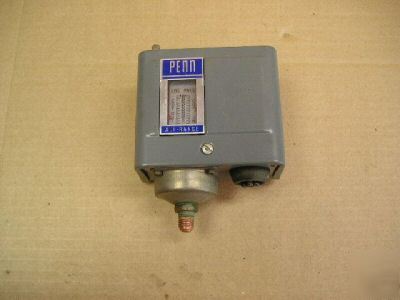

Penn Div., Johnson Controls Inc., Pressure Switch, P72AA-17, Opens Low, Range 50/450PSIG, scale range 50 to 450 Psig with Cut In and Cut Out pointer. Motor Ratings: 120V- 2Hp, 208V- 3Hp, 240V- 3Hp, 220 2 phase- 5Hp, 208V 3 phase- 5Hp, 220V 3 phase- 5Hp. AC Full Load Amps- 24A- 120V, 208V, 240V, 15.9A-208 3 phase, 15A- 220 3 phase. Locked Rotor Amps- 144A- 120V, 208V 240V, 95.4A-2208V, 90A-220 3 phase. Full Load and Locked Rotor Amps (not horsepower) ratings apply to Hermetic Compressors only. There are adjustments for Cut In and Cut Out pressure. On the inside cover are wiring directions. Dimensions- 4â€x3â€x2â€. Unit is in good condition. Picture shown is for P70AB but the P72AA-17 looks the same. For questions please send email to: ****@warwick.net
Click to view supersized image
Click to view supersized image
