Microchip pic 18F8722 PC104 single board cpu
Included in this development kit:

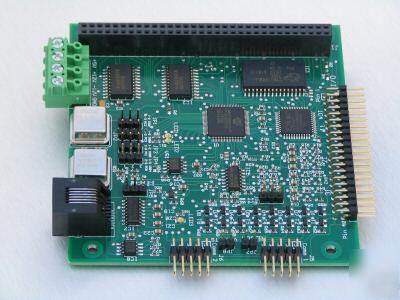

MC104P single board computer with PC/104 connector
The MC104p has been designed as a PC/104 CPU board implementing the Microchip PIC18F8722 microcontroller. The PIC18F8722 processor is a powerful member of the popular PIC® family of microcontrollers with many software and hardware tools available to aid in development. The MC104P is a low cost PC104 compatible controller with full I/O addressing capability. The rugged PC104 board form factor gives users an open platform to add standard and specialty I/O boards. Engineers can quickly add building block modules such as high resolution analog, VGA video, optically isolated I/O, serial ports or motion cards using the PC104 architecture, www.pc104.org. Or, use the board as a standalone product using the on board I/O, analog inputs, and memory.
Microchip's MPLAB® ICD2 connector is provided for use with the MPLAB® ICD2 programmer/debugger from Microchip. Combined with any one of the low cost software tools from Microchip and its partners, the MC104p has powerful development and diagnostic capabilities.
http:// /MC104p%20brochure.pdf
* 1 configurable RS-232/RS-485 serial port
* 4 analog inputs ( 0- 5VDC)
* 4 high speed inputs with interrupt capability or tied to IRQ 4,5,6,7
* 8 digital outputs (Open collector 40V max, 500mA)
Comes with CD that contains all manuals and libraries. This is the non-extended pin model, this allows cards to be stacked on top.
See manufacturer's website
This is the memory map of MC104P:
Free windows software that comes with the board. It is a software 'sniffer' that can display the microchip's special registers and it also has an oscilloscope mode to plot inputs, outputs and analog values WHILE
a program is running on the MC104P:
