New amot model 8351 pressure tansducer amplifier

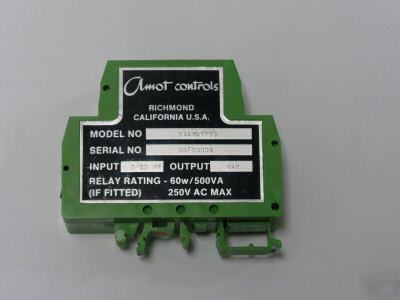

NEW AMOT Model 8351B-1-1-1-1 Pressure Transducer
- Analog Output: 4-20mA or 1-5V (Switchable)
- Accuracy: better than +/- 0.25% of Full Scale Output
- Thermal Effects: less than +/- 0.02% of FSO per deg C
- Power Requirements: 24 DC (19-32V DC), stabalized or un-regulated
- Set Point Range: 5-100% of Full Scale
- Relay Rating: 2A Current, 250V AC/DC, 60W/500VA Power
- Relay Action: Selectable as energized above or below set point
Review complete datasheet here: http:// /images/Amot8351.pdf
AMOT SPOT 8351 Transducer Amplifier Module is a compact, cost effective device
that converts unregulated 24 VDC power into a 10V transducer excitation signal.
Perfect for augmenting existing power supply equipment, or for use where a
regulated 10 VDC signal is unavailable, this module also converts the output signal
from either 20 mV or 100 mV full-scale output transducers into a field-selectable
4-20 mA or 1-5 VDC analog signal. The unit features face plate adjustment of zero
and span for in-place calibration.
AMOT SPOT 8351 Transducer Amplifier Module with SPDT Relay combines all of the
features listed above with a field-adjustable SPDT Relay. The relay feature may be
used to initiate additional control sequences, activate or deactivate alarms or
engage other systems requiring contact closure on a predetermined pressure level.
The unit incorporates an LED trip point indicator, set point adjustment, hysteresis
adjustment, and energized above or below set point selector switch all conveniently .
located on the face plate for easy access.
