> New micro switch LSXA4L explosion proof limit switch -

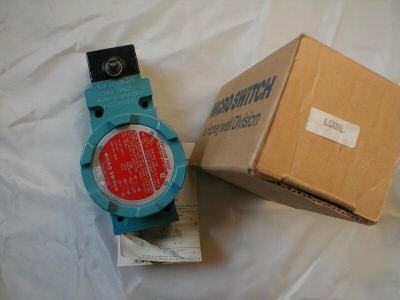

New micro switch LSXA4L explosion proof limit switch -
Switch, Limit, EXPLOSION PROOF, SIDE Rotary, DPDT, 3/4 Inch -14 NPT
LSX switches are for use either indoors or outdoors in hazardous atmospheres as they are a completely sealed explosion-proof device. Mounting hole location and tracking is same as the long established MICRO SWITCH ML-E1 explosion-proof switch. An optional mounting plate provides the same tracking and mounting as the standard HDLS. The majority of HDLS operating heads and circuitry options are available on the LSX. Standard HDLS levers are used, but because of explosion-proof requirements, only nylon rollers or other non-sparking material can be selected. Plunger and cat whisker types listed in the LSX order guide are of non-sparking material. Application proven HDLS head seals are retained to seal the top of the LSX. The circular cover on the front is easily unscrewed to expose the switching elements for wiring or replacement. A screwdriver or bar used on the wrenching lugs extending from the front of the cover allows easy removal or tightening. An O-ring seal is located between the housing and cover. The LSX withstands pressure of an internal explosion and cools the exploding gases below the kindling temperature of the explosive atmosphere. Flame paths are provided by the cover-housing threads and an extended plunger between the switch cavity and head.
* Sealing — Applicable Portions of NEMA 1, 3, 4, 6, 7, 9, and 13
* Tracking Interchangeability with MICRO SWITCH ML-E1 and HDLS
* Variety of Heads and Non-Sparking Actuators
* Field Adjustability Matches Switch to Application
* Momentary, Maintained, Random Sequence, or Center Neutral Action
* 10 Amps Continuous Carry Electrical Rating
* Choice of Silver or Gold Contacts
* 1â„2 or 3â„4 Inch Conduit Opening
* CSA Certified, File #LR57327
- This item is new old stock in box.
