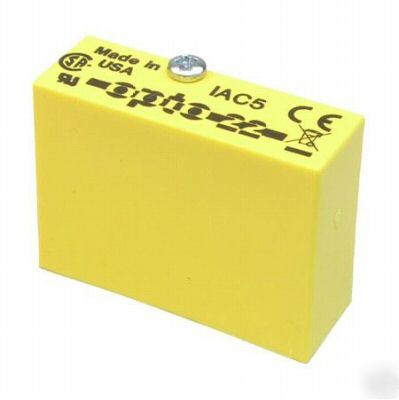

New opto 22 IAC5E ac input modules qty. 10
New Lot of 10 Opto 22 I/O Modules Standard AC Inputs IAC5E
New Lot of 10 Opto 22 I/O Modules Standard AC Inputs IAC5E
* AC Input: 90 – 140 Volts AC, 5 Volts DC Logic
* AC input modules are used for sensing ON/OFF alternating current (AC) voltage levels. All AC input modules are designed with filtering on the input and a hysteresis amplifier for high noise rejection and transient-free “clean†switching.
* Each module provides 4,000 Vrms of optical isolation between the field inputs and logic output of the circuit.
* Typical uses and applications include sensing the presence or absence of voltage or sensing contact closures from sources such as:
* Operating Ambient Temperature: -30° Celsius to 70° Celsius
* Isolation Input-to-Output: 4,000 Vrms
* Output Voltage Drop: 0.4 volts @ 50 milliamps
* Output Current: 50 milliamps
* Output Leakage with No Input: 100 micro-amps @ 30 Volts DC
* Output Transfer: 30 volts breakdown
* Input Voltage Range: 90 – 140
* Input Current @ Max Line: 5
* Input Allowed for No Output: 3.45
* Output Supply Voltage-Nominal: 5
* Output Supply Voltage-Range: 4.5 – 6
* Output Supply Current @ Nominal Logic Voltage: 12
* Input Resistance (R1 in schematic diagram): 28k
