New rosemount 751AM3I5B remote output meter 0-300 f -

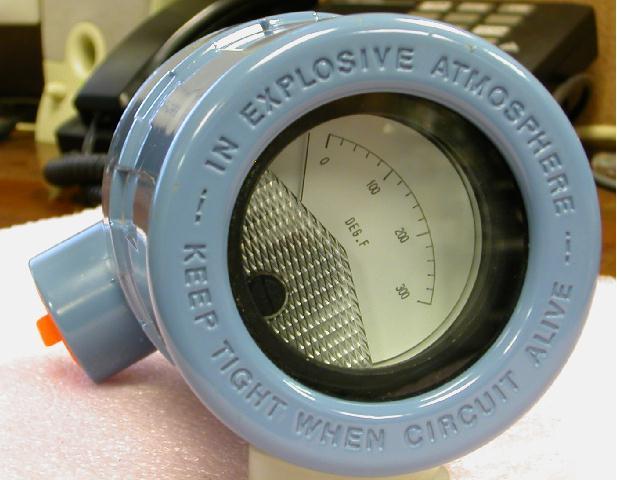

ROSEMOUNT 751AM3I5B REMOTE OUTPUT METER 0-300 Deg.F - NEW
The Model 751 Field Signal Indicators provide a means of displaying important process variables. These devices operate with any two-wire transmitter that measures input variables such as pressure, flow, liquid level, or temperature. Rosemount indicators are ideal for installations where an integral meter would be difficult to view.
Model 751 Indicators are designed for use in industrial environments where all-weather performance is necessary. These units are vibration- and corrosion-resistant, and explosion-proof or intrinsically safe
With the analog meter, several meter scaling options are available to suit special application requirements with ±2 percent of calibrated span accuracy. Linear 0 to 100 percent meter scaling is adequate for the majority of measurement applications. With a flow transmitter, a logarithmic 0 to 100 percent flow scale is available. As an option, the user can specify special meter scaling for direct readout in psi, gph, °F, °C, or other convenient engineering units.
The large, 21/4-inch diameter meter face has a 2-inch long scale for easy readability. A zero adjustment is located on the meter faceplate (accessible with the housing cover removed). The meter can be rotated within the enclosure for convenient viewing in 90-degree increments.
Please feel free to email with any questions.
