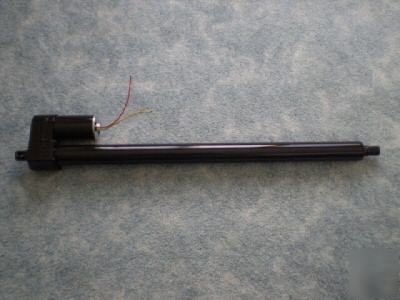

Warner electric linear actuator 24" stroke) 12V/1000LB
Used D12-10B5-24 actuator. Used very little, looks like new, even the mounting pins have all the paint still on them. This 24" stroke actuator has a 1000 lb load rating. The actuator has a travel time of roughly 25 seconds when loaded from fully retracted to fully extended. Please note, this actuator has a duty cycle of 25% at full load. This means if the actuator runs for 25 seconds, it must be off for 75 seconds before it runs again. If the load is lower say 500 lbs., then the off time can be reduced. None of the actuators in this class are able to run continuously. Please keep this in mind. Also, these actuators can not be side loaded, especially when this long, or you will damage it. The pin to pin (retracted) length is 35 inches. The actuator has a ball dedent overload clutch.
