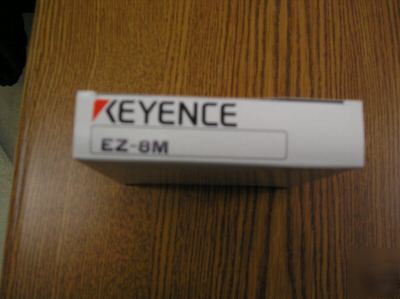

keyence prox sensor ez-8M
Detecting distance: 1.5mm+10%, Supply voltage: DC 12 to 24V+10%, Ripple (p-p): 10% max., Current consumption: 13mA max., Control output: NPN open-collector 10 mA max. (40V max) Residual voltage: 1V max., Responce frequency: 800Hz., Output mode: N.O./N.C., Target: All metals. Standard target: 10X10mm, Hysteresis: 10% max. of detecting distance. Temperature dluctuation: +10% max. of detecting distance at 23 C(73.4F), within 25 to 80C(-13 to 176F). Ambient temperature: -25 to +80C(-13 to 176F), no freezing. Relative Humidity: 35 to95%, No condensation. Vibration: 10 to 55 Hz 1.5mm double amplitude(in X,Y, and Z directions, respectively for 2 hours). Cord length: 2m. Weight: 50g.
